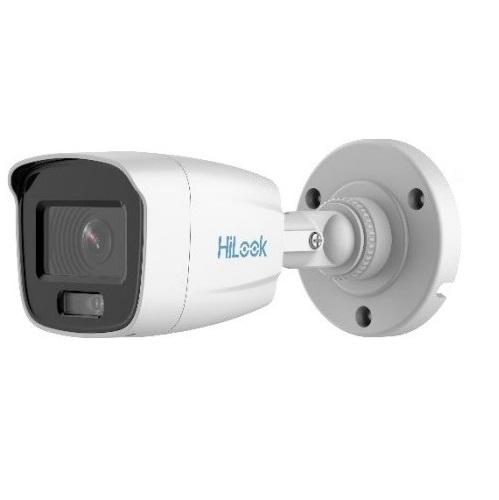

Camera IP COLORVU LITE 2.0 Megapixel HILOOK IPC-B129H
- Camera IP COLORVU LITE 2.0 Megapixel HILOOK IPC-B129H cho hình ảnh màu sắc 24/7.
- Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Độ nhạy sáng: 0.001 Lux @ (F1.0, AGC ON) (Color).
- Ống kính: 4mm.
- Tầm xa chiếu sáng sử dụng ánh sáng trắng 30 mét.
- Hỗ trợ chức năng chống ngược sáng Digital WDR.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng bù ngược sáng BLC.
- Hỗ trợ chức năng HLC (High Light Compensation).
- Tính năng phát hiện chuyển động.
- Hỗ trợ giám sát bằng ứng dụng HiLook trên điện thoại.
- Tiêu chuẩn chống bụi và nước: IP67 (camera thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ chức năng cấp nguồn qua Ethernet PoE.
- Nguồn điện: DC12V.
Đặc tính kỹ thuật
| Model | IPC-B129H |
| Camera | |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) |
| Shutter Speed | 1/3s to 1/100,000s |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | Digital WDR |
| Lens | |
| Lens Type & FOV | 2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° |
| Aperture | F1.0 |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| Depth of Focus | 2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞ |
| Illuminator | |
| Smart Supplement Light | Yes |
| Supplement Light | White |
| White Light Range | Up to 30 m |
| Video | |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | HiLookVision PC Client, HiLookVision App |
| Web Browser | Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) | |
| Basic Event | Motion detection, exception (illegal login) |
| General | |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Web Client Language | English |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
| Software Reset | Reset via web browser and client software |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
| Power Consumption and Current | 12 VDC, 0.30 A, max. 3.6 W PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Material | Metal |
| Camera Dimension | 57.7 × 62 × 152 mm |
| Package Dimension | 172 × 104 × 80 mm |
| Camera Weight | Approx. 310 g (0.7 lb.) |
| With Package Weight | Approx. 430 g |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Ingression protection: IP67 (IEC 60529-2013) |
- Bảo hành: 24 tháng.
