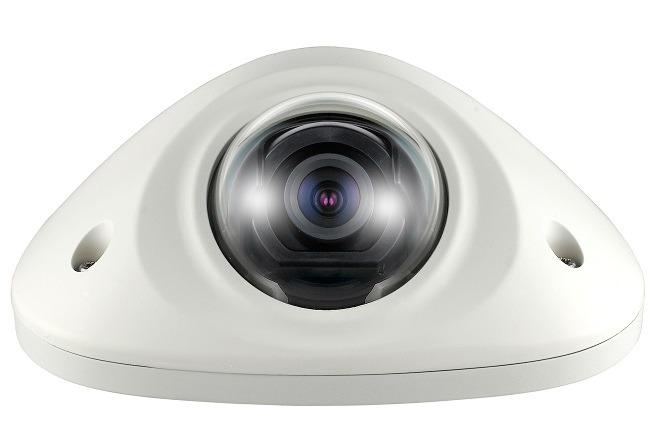

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET SNV-6012M
- Độ phân giải tối đa: 2M (1920 x 1080), Full HD (1080p).
- Tốc độ khung hình: 60fps @ 1920 x 1080
- Chuẩn nén camera ip: H.264 & MJPEG.
- Ống kính cố định: 3mm.
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng chống sương mù Defog.
- Chức năng chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Model | SNV-6012M |
| Video | |
| Imaging Device | 1/2.8 inch 2.38M CMOS |
| Effective Pixels | 1,944(H) x 1,104(V) |
| Min. Illumination | Color: 0.3Lux (1/30sec, F1.2, 50IRE), 0.005Lux (2sec, F1.2, 50IRE), 0.15Lux (1/30sec, F1.8, 50IRE) B/W: 0.3Lux (1/30sec, F1.8, 50IRE), 0.15Lux (F1.8, 30IRE) |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 103.1°/ V: 53.9° / D: 124.5° |
| Lens Type | Fixed iris |
| Mount Type | Board-in type |
| Pan/Tilt | Pan: -10° ~ 10°, Tilt: 0° ~ 90° |
| Operational | |
| Camera Title | Off/ On (Displayed up to 45 characters) |
| Day & Night | Auto (Electrical) / Color/ B/W / Schedule |
| Backlight Compensation | Off / BLC |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off/ On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off/ On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4ea 4 points polygonal zones) |
| Privacy Masking | Off / On (32 zones with 4 points of polygonal) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Off / On |
| IntelligentVideo Analytics | Tampering, Virtual line, Enter/ Exit, (Dis) Appear, Audio detection, Face detection |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, Localstorage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers) |
| Network | |
| Ethernet | 10Base-T / 100Base-TX, M12 connector (4poles, Female, D-coding) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Edge Storage | SD/SDHC/SDXC - Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) |
| Application Programming Interface | ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 |
| General | |
| Input Voltage / Current | PoE (Class A type only) |
| Power Consumption | Max. 7.5W |
| Color/ Material | Ivory / Aluminum |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Dimension (WxHxD) | 135.2 x 54.3 x 124.5 mm |
| Weight | 530g |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
