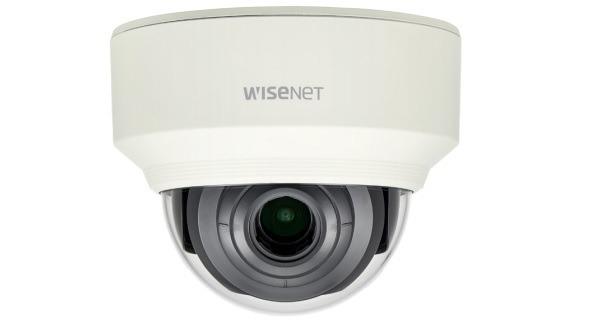

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XND-L6080V/VAP
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.
- Độ phân giải camera ip: 2.0 Megapixel.
- Độ nhạy sáng: 0.1Lux@F1.6 (Color), 0.01Lux@F1.6 (B/W).
- Ống kính: 3.2 ~ 10 mm.
- Góc quan sát theo chiều ngang: 109° (Wide) ~ 33.2° (Tele).
- Góc quan sát theo chiều dọc: 57.4° (Wide) ~ 18.7° (Tele).
- Góc quan sát theo phương chéo: 132.0° (Wide) ~ 38.0° (Tele).
- Phạm vi Pan/ Tilt/ Roate: 0° ~ 354° / 0° ~ 67° / 0° ~ 355°.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống sương mù Defog.
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng giảm nhiễu số SSNRV (2D+3D).
- Tiêu chuẩn chống va đập: IK08.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Kích thước: Ø140.8 x 113.0mm.
- Trọng lượng: 675g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color: 0.1Lux@F1.6, B/W: 0.01Lux@F1.6 |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| USB: micro USB type B, 1280 x 720 for installation | |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide) ~ F2.9(Tele) |
| Angular Field of View | H : 109.0°(Wide) ~ 33.2°(Tele) / V : 57.4°(Wide) ~ 18.7°(Tele) / D : 132.0°(Wide) ~ 38.0°(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus (Motorized V/F) / Manual - Remote control via network (Manual, Simple focus) |
| Lens Type | DC auto iris |
| Mount Type | Board-in type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Off / On (Displayed up to 85 characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSNR (Off / On) |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (Input from fog detection) / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| Contrast | Level adjusment |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off/On, Hallway view: 90º/270º |
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection |
| Alarm Triggers | Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output |
| Pixel Counter | Support |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Max. Framerate | H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps |
| Smart Codec | Manual mode (Area-based: 5ea) |
| WiseStream II | Support |
| Video Quality Adjustment | H.265 / H.264, MJPEG : Target Bitrate Level Control |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 5 profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Storage | SD/SDHC/SDXC 1slot (up to 256GB) |
| - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded | |
| NAS (Network Attached Storage), Local PC for instant recording | |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Supported Browser: Google Chrome 63, MS Edge 41,MS Internet Explorer 11, | |
| Mozilla Firefox 57 (Window 64bit only), Apple Safari 11 | |
| (Mac OS X only) | |
| Central Management Software SmartViewer, SSM ENVIRONMENTAL | |
| Operating Temperature / Humidity -10°C ~ +55°C (-14°F ~ +131°F) / Less | |
| Central Management Software | SmartViewer, SSM |
| Ingress Protection / Vandal Resistance | IK08 |
| ELECTRICAL | |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 6W, Typical 4W |
| Color / Material | Ivory (NCS S 0502-Y) / Aluminum |
| Dimensions | Ø140.8 x 113.0mm |
| Weight | 675g |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
