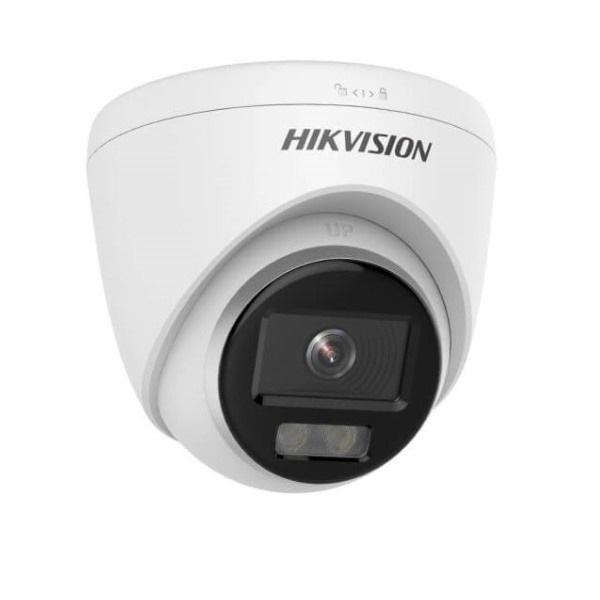

Camera IP Dome 2.0 Megapixel HIKVISION DS-2CD1327G0-LUF
- Camera IP HIKVISION dòng ColorVu Lite hỗ trợ màu 24/7.
- Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.
- Độ phân giải: 1920×1080@25fps.
- Ống kính cố định: 2.8mm (đặt hàng 4mm).
- Độ nhạy sáng: 0.001Lux@F1.0, ảnh màu chất lượng cao 24/7.
- Hỗ trợ ánh sáng trắng tầm xa 30 mét.
- Chức năng chống ngược sáng DWDR.
- Chức năng tự động điều chỉnh độ lợi AGC.
- Chức năng bù ngược sáng BLC.
- Chức năng giảm nhiễu số 3D-DNR.
- Khe cắm thẻ nhớ microSD 256GB (max).
- Tích hợp Micro thu âm thanh.
- Nguồn điện: 12VDC, PoE.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Kích thước: Ø110 × 100.8 mm.
- Trọng lượng: 500g.
Đặc tính kỹ thuật
| Model | DS-2CD1327G0-LUF |
| Camera | |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1° 4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F1.0 |
| Illuminator | |
| Smart Supplement Light | Yes |
| White Light Range | Up to 30 m |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Plug-in required live view: IE 10+ | |
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | Yes |
| Hardware Reset | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| General | |
| Linkage Method | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Camera Material | Metal & Plastic |
| Camera Dimension | Ø109.9 mm × 103.6 mm (Ø4.33″ × 4.08″) |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Camera Weight | Approx. 370 g (0.82 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | V5.5.122 |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Protection | IP67 |
- Bảo hành: 24 tháng.
