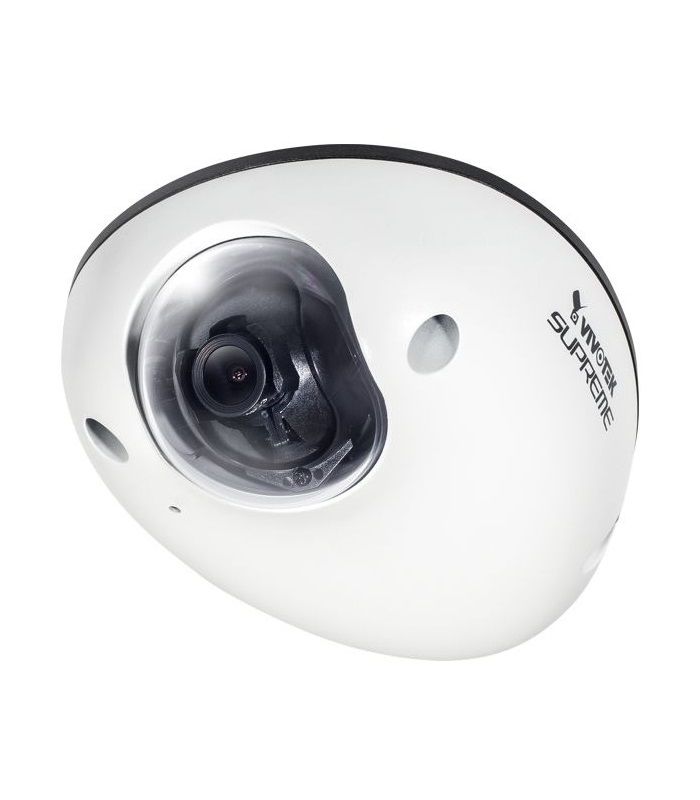

Camera IP Dome 2.0 Megapixel Vivotek MD8563-EH
-Cảm biến hình ảnh: 1/2.7 inch CMOS.
-Chuẩn nén hình ảnh: H.264 và MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel.
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC.
-Ống kính: 2.8mm (MD8563-EHF2), 4mm (MD8563-EHF4) (Fixed-focal).
-Zoom số: 48x.
-Chức năng quan sát Ngày và Đêm (IR-CUT).
-Chức năng chống ngược sáng WDR Pro.
-Chức năng Smart Stream II.
-Chức năng Video Rotation.
-Chức năng giảm nhiễu số 3DNR.
-Digital input/ output: 1/1.
-Tích hợp microphone.
-External line output.
-Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Hỗ trợ điều hành: Microsoft Windows 8/7/Vista/XP/2000.
-Hỗ trợ trình duyệt Web: Mozilla Firefox 7~10 (streaming only), Internet Explorer 7/8/9/10/11.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 4.2W.
-Kích thước: 129 x 107 x 54mm.
-Trọng lượng: 453g.
Đặc tính kỹ thuật
| Model | MD8563-EHF2: f = 2.8 mm |
| MD8563-EHF4: f = 4 mm | |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Camera Features | |
| Image Sensor | 1/2.7 inch Progressive CMOS |
| Maximum Resolution | 1920 x 1080 |
| Lens Type | Fixed-focal |
| Focal Length | MD8563-EHF2: f = 2.8 mm |
| MD8563-EHF4: f = 4 mm | |
| Aperture | MD8563-EHF2: F1.8 |
| MD8563-EHF4: F1.6 | |
| Field of View | MD8563-EHF2: |
| 114° (Horizontal) | |
| 65° (Vertical) | |
| 119° (Diagonal) | |
| MD8563-EHF4: | |
| 82° (Horizontal) | |
| 46° (Vertical) | |
| 101° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | MD8563-EHF2: |
| 0.21 Lux @ F1.8 (Color) | |
| MD8563-EHF4: | |
| 0.22 Lux @ F1.6 (Color) | |
| Pan Range | ±5 degree |
| Tilt Range | 90° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| On-board Storage | MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 30 fps @ 1920×1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | MD8563-EHF2: 55dB |
| MD8563-EHF4: 50dB | |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Smart Stream II |
| Image Settings | Time stamp, text overlay, flip & mirror. Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks. Scheduled profile settings, 3DNR, video rotation |
| Audio | |
| Audio Capability | Audio input / Audio output (Full duplex) |
| Compression | G.711, G.726 |
| Interface | Built-in microphone |
| External line output | |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card. File upload via HTTP, SMTP, FTP, NAS server and SD card |
| General | |
| Connectors | M12 for Network/PoE connection |
| Audio line out | |
| Digital input x 1 | |
| Digital output x 1 | |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 4.2W |
| Dimensions | 129 mm (D) x 107 mm (W) x 54 mm (H) |
| Weight | 453g |
| Casing | Weather-proof IP67-rated housing. Vandal-proof IK10-rated housing |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL, IP67, IK10, EN50130-4, EN50121-4, EN50155, IEC60571 |
| Operating Temperature | Working Temperature: -40°C ~ 70°C (-40°F~ 158°F)Starting Temperature: -40°C ~ 70°C (-40°F~ 158°F) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/ 7/ Vista/ XP/ 2000 |
| Web Browser | Mozilla Firefox 7~10 (streaming only), Internet Explorer 7/8/9/10/11 |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
-Bảo hành: 36 tháng.
