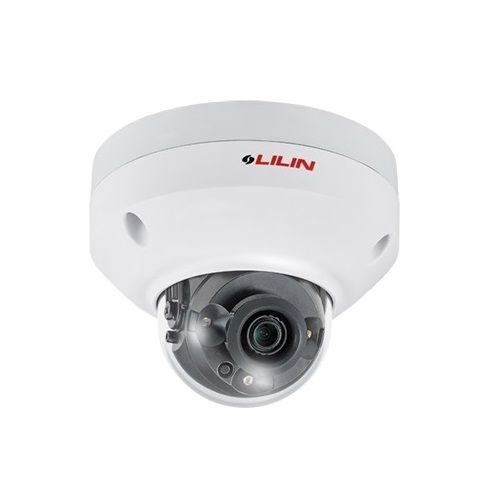

Camera IP Dome hồng ngoại 2.0 Megapixel LILIN P2R6322AE4
- Cảm biến hình ảnh: 1/2.8″ CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén: H.265/HEVC và H.264/AVC.
- Ống kính cố định: 4mm.
- Giảm nhiễu 3D noise reduction (MCTF).
- Chống ngược sáng HDR 120dB.
- Hỗ trợ Digital PTZ.
- Hỗ trợ tính năng thông minh IVS.
- Tầm xa hồng ngoại camera quan sát được lên đến 30 mét.
- Chức năng quan sát Day & Night (IR cut removable).
- Hỗ trợ âm thanh 2 chiều.
- Hỗ trợ chuẩn ONVIF Profile S, Profile T và Profile G.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: DC12V ±10% / PoE (IEEE 802.3af compliant).
Thông số kỹ thuật
| Model | P2R6322AE4 |
| Min. illumination/Low Light Mode (Colour) | Color: 0.004 Lux at F1.6; B/W: 0.001 Lux at F1.6; 0 Lux with IR LED ON |
| Focal Length | 4mm |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View | 91.0° (H) 48.0° (V) 109.0° (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° |
| Max IR distance | 30m |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 1945 (H) × 1097 (V) = 2,133,665 (Pixels) |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, SIP, External Microphone Required |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW/300mA, 450mW), Terminal block |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Number of streams | 4 |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode 60Hz: 60 fps @ 1920 × 1080 50Hz: 50 fps @ 1920 × 1080 HDR mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 / x32 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif |
| High Dynamic Range (HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| EV (Exposure Value) | Adjustable |
| Lens distorsion correction (LDC) | Yes |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S, ONVIF Profile T, ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| IVS Basic 1.0 | Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection, Object Counting |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / SmartEvent |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm / SNMP Trap / Push Service notification |
| Network Interface/ Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G, SDDP, Bonjour, 802.1x, SSL/TLS |
| Max number of online users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Operating temperature | -40°C ~ +50°C (-40°F – 122°F) |
| Storage temperature | -25°C ~ +60°C (-13°F – 140°F) |
| Operating humidity | 0% ~ 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Dimensions | Ø110 × 89(H) mm |
| Weight | 520g |
| Casing Material | Aluminum alloy |
- Bảo hành: 36 tháng.
