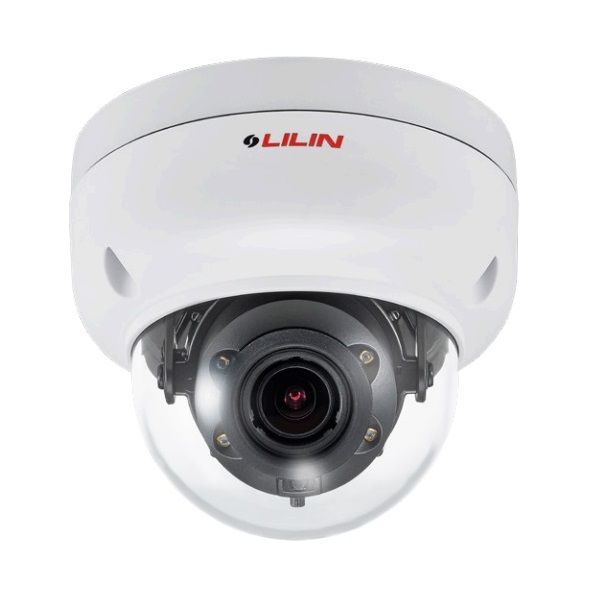

Camera IP Dome hồng ngoại 2.0 Megapixel LILIN Z3R6422X3
- Cảm biến hình ảnh: 1/2.8″ CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén: H.265/HEVC và H.264/AVC.
- Ống kính: 2.8 – 12 mm (zoom/focus motorized).
- Giảm nhiễu 3D noise reduction (MCTF).
- Chống ngược sáng với HDR 120dB.
- Hỗ trợ Digital PTZ.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng quan sát Day & Night (IR cut removable).
- Hỗ trợ âm thanh 2 chiều.
- Hỗ trợ chuẩn ONVIF Profile S, T.
- Tiêu chuẩn chống bụi và nước: IP67 (camera thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: DC12V ±10% / PoE (IEEE 802.3af compliant).
Thông số kỹ thuật
| Model | Z3R6422X3 |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Min. illumination/Low Light Mode (Colour) | Color: 0.01 Lux at F1.8; B/W: 0.002 Lux at F1.8; 0 Lux with IR LED ON |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris | F1.8 (W) – F3.3 (T) |
| Iris Control | Fixed IRIS |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Max IR distance | 30m |
| Effective pixels | 1945 (H) × 1097 (V) = 2,133,665 (pixels) |
| Motion sensor | Wall, Ceiling, Pole |
| Dimensions | Ø120 × 106 mm |
| Weight | 760g |
| Casing Material | Aluminum alloy |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW/300mA, 450mW), Terminal block |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Number of streams | 4 |
| User accounts | 10 simultaneous users |
| Multi IP address | Yes |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 HDR mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Back Light Compensation (BLC) | Yes |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up+ | Yes |
| Sense Up | Off / x2 / x4 / x8 / x16 / x32 |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif |
| High Dynamic Range (HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| Auto Focus | One Push |
| EV (Exposure Value) | Adjustable |
| Lens distorsion correction (LDC) | Yes |
| Video Management | ONVIF Profile S / ONVIF Profile T / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| IVS Basic 1.0 | Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection, Object Counting |
| Alarm event triggers | Motion / Tamper / Alarm / Network lost detection / SmartEvent |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm / SNMP Trap / Push service notification |
| Network Interface/Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, ONVIF Profile T, SDDP, Bonjour, 802.1x, SSL/TLS |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 |
- Bảo hành: 36 tháng.
