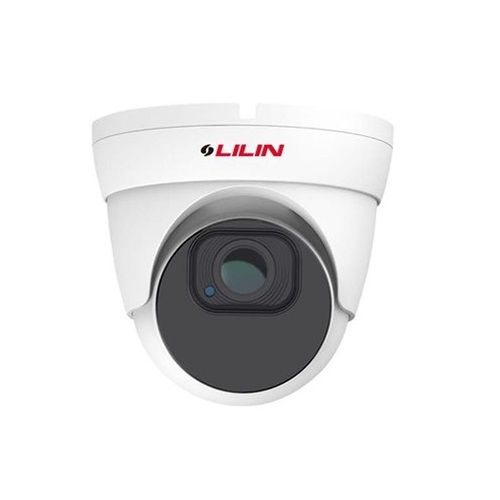

Camera IP Dome hồng ngoại 5.0 Megapixel LILIN E5R4052A
- Cảm biến hình ảnh: 1/2.7″ CMOS.
- Tầm quan sát hồng ngoại: 30m.
- Ống kính: 3.6mm, Fixed iris.
- Chức năng giảm nhiễu 3D DNR.
- Chức năng bù ngược sáng BLC.
- Tích hợp khe cắm thẻ nhớ micro SD, tối đa lên đến 256GB.
- Tích hợp Microphone.
- Hỗ trợ giám sát camera từ xa qua điện thoại.
- Nguồn điện: DC12V/PoE.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Model | E5R4052A |
| Min. illumination/Low Light Mode (Colour) | Color 0.002Lux @(F1.2,AGC ON); B/W 0 lux @ IR ON |
| Focal Length | 3.6mm |
| Iris | F1.6 |
| Iris Control | Fixed |
| Angle of View | Horizontal: 79°, Vertical: 56°, Diagonal: 106° |
| Peak wavelength | 850nm |
| Max IR distance | 30M |
| Pick Up Element | 1/2.7″ CMOS image sensor |
| Effective pixels | 2608(H) X 1960(V) = 5,111,680 (Pixels) |
| IP Rating | IP66 |
| Microphone | Built-in Microphone |
| Audio | One-way Audio, G.711 u-law |
| Video Compression | H.265/HEVC Main Profile, H.264 Main and High Profile, Motion JPEG |
| Video streaming | RTSP/UDP, RSTP/TCP, configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Maximum Frame Rate | 2592×1920 / 20 fps |
| Access | Multiple user access levels with password protection |
| User accounts | 7 user accounts available |
| Resolution | Mainstream: 2592×1920, 2304×1728, 2304×1280, 1920×1080, 1280×960, 1280×720 Substream: 1280×720, 720×576, 720×480, 640×480 Mobilestream: 720×480, 640×480, 352×240 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Schedule / Day (Color) / Night (Mono) |
| White Balance | Auto / Manual (Adjustable) |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up+ | Off / x2 / x4 |
| Auto Gain Control | 6 / 12 / 18 / 24 / 30 / 36 dB |
| S / N Ratio | More than 48dB (AGC off) |
| 3D Noise Reduction | Yes |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| EV (Exposure Value) | Adjustable |
| Video Management | ONVIF Profile S / LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| Alarm event triggers | Motion / Network break |
| Alarm event actions | FTP / SMTP / SD / SAMBA |
| Languages | English, Traditional Chinese, Simplified Chinese |
| Network Interface/ Ethernet | 10Base-T / 100Base-TX, RJ-45 |
| OSD | Text overlay for date, time, and camera name (position configurable text overlay for date, time, camera name) |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S |
| Max number of online users | 7 simultaneous users |
| Operating temperature | -30°C ~ +50°C (-22°F ~ 122°F) |
| Storage temperature | -30°C ~ +60°C (-22°F ~ 140°F) |
| Operating humidity | 0% ~ 95% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 4W / PoE, 5.5W |
| Dimensions | Ø100 x 90(H) mm |
| Weight | 418g |
| Casing Material | Aluminum alloy |
- Bảo hành: 36 tháng.
