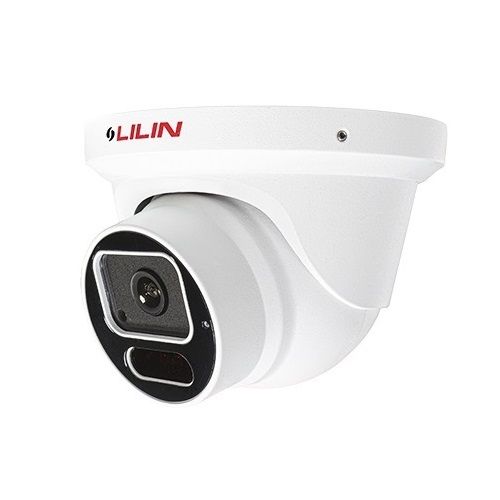

Camera IP Dome hồng ngoại 5.0 Megapixel LILIN P6R6552E2
- Camera quan sát dạng bán cầu chống va đập 5MP Day & Night Fixed IR.
- Cảm biến hình ảnh: 1/2.7″ CMOS.
- Chuẩn nén: H.265/HEVC và H.264/AVC.
- Ống kính cố định: 2.8mm.
- Giảm nhiễu với công nghệ 3D noise reduction (MCTF).
- Chống ngược sáng với HDR lên đến 140dB.
- Chức năng chống sương mù Defog.
- Tầm quan sát hồng ngoại: 35 mét.
- Âm thanh 1 chiều, tích hợp Microphone.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Model | P6R6552E2 |
| Min. illumination/Low Light Mode (Colour) | Color: 0.09 Lux at F1.6; B/W: 0.02 Lux at F1.6; 0 Lux with IR LED ON |
| Focal Length | 2.8mm |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View (H) | 110.3 (H) |
| Angle of View (V) | 58.2 (V) |
| Angle of View (D) | 131.6 (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Max IR distance | 35m |
| Pick Up Element | 1/2.7″ CMOS image sensor |
| Effective pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Light sensor | Yes |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Audio | One-way Audio, G.711 u-law / AAC, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 HDR mode: 60Hz: 30 FPS @ 2880 x 1616 50Hz: 25 FPS @ 2880 x 1616 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range (HDR) | Up to 140dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| EV (Exposure Value) | Adjustable |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Network Interface/ Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast, ONVIF Profile S, ONVIF Profile T,ONVIF Profile G |
| Max number of online users | 10 simultaneous users |
| Log | Event & operation log & IVS event log |
| Schedule Setting | Support holiday list |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Operating temperature | -30°C ~ +50°C (-22°F ~ 122°F) |
| Storage temperature | -25°C ~ +60°C (-13°F ~ 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.4W / PoE, 8.2W |
| Dimensions | Ø115 × 91 mm |
| Weight | 435g |
| Casing Material | Aluminum alloy |
- Bảo hành: 36 tháng.
