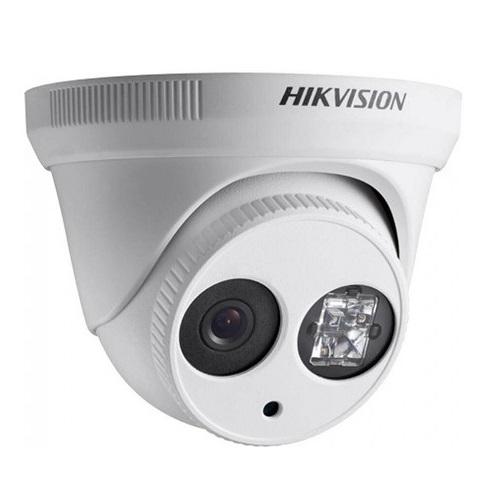

Camera IP Dome hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2363G0-IU
- Cảm biến hình ảnh: 1/2.9 inch Progressive Scan CMOS.
- Độ phân giải: 3072 × 2048 @20fps.
- Ống kính: 2.8mm (Tùy chọn 4/6mm).
- Độ nhạy sáng: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR.
- Tầm quan sát hồng ngoại: 30 mét.
- Chuẩn nén hình ảnh: H.265+, H.265, H.264+, H.264.
- Chống ngược sáng thực 120dB WDR.
- Tích hợp microphone thu âm thanh.
- Chức năng bù ngược sáng BLC.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng chống sáng chói HLC.
- Hỗ trợ khe thẻ nhớ micro SD/SDHC/SDXC dung lượng lên đến 128 GB.
Đặc tính kỹ thuật
| Model | DS-2CD2363G0-IU |
| Camera | |
| Image Sensor | 1/2.9 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Day &Night | IR cut filter |
| WDR | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens | Fixed lens, 2.8/4/6 mm |
| Aperture | F2.0 |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 3072 × 2048 |
| Video Compression | Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio | |
| Audio Bit Rate | 64Kbps (G.711)/ 16Kbps (G.722.1)/ 16Kbpsv(G.726)/ 32-192Kbps (MP2L2)/ 8Kbps320Kbps (MP3) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Environment Noise Filtering | Yes |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Interface | |
| Audio | 1 audio input (built-in microphone), mono sound |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Communication Interface | 1 RJ45 100M self-adaptive Ethernet port |
| Interface Style | Pigtail style interface |
| Smart Feature-Set | |
| Smart Event | Line crossing detection, intrusion detection and face detection |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| General | |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via email, pixel counter, HTTP listening |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W |
| Ingress Protection | IP66 |
| Material | Metal |
| Dimensions | Φ127.3 × 95.9 mm |
| Weight | 635g |
- Bảo hành: 24 tháng.
