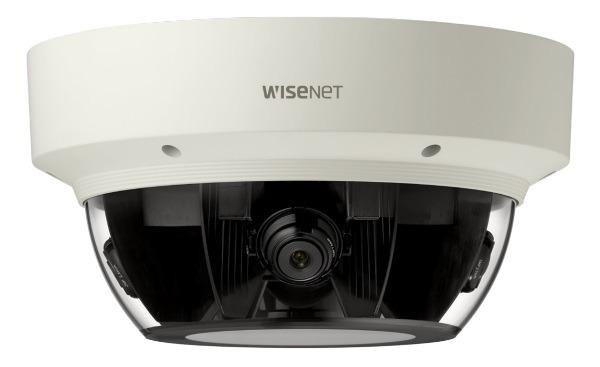

Camera IP Dome Multi 8 Megapixel đến 20 Megapixel Hanwha Techwin WISENET PNM-9000VQ
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ phân giải camera ip: 8 Megapixel đến 20 Megapixel tùy thuộc khi dùng kết hợp với các loại ống kính rời.
- Các loại ống kính dùng kết hợp: SLA-2M2400Q, SLA-2M2800Q, SLA-2M3600Q, SLA-2M6000Q, SLA-5M3700Q, SLA-5M4600Q, SLA-5M7000Q.
- Ống kính cố định (2 Megapixel module): 2.4mm, 2.8mm 3.6mm. 6mm.
- Ống kính cố định (5 Megapixel module): 3.7mm, 4.6mm, 7mm.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống sương mù Defog.
- Chức năng chống ngược sáng WDR 150dB với độ phân giải 2 Megapixel.
- Chức năng chống ngược sáng WDR 120dB với độ phân giải 5 Megapixel.
- Hỗ trợ LDC.
- Hỗ trợ WiseStream Ⅱ.
- Hỗ trợ 4 khe cắm thẻ nhớ SD/SDHC/SDXC (mỗi kênh).
- Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE+.
Đặc tính kỹ thuật
| Model | PNM-9000VQ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480 (N), 720 x 576 (P), for installation |
| OPERATIONAL | |
| Camera Title | On / Off (Displayed up to 85 characters) |
| - W/W : English / Numeric / Special characters | |
| - China : English / Numeric / Special / Chinese characters | |
| - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, | |
| Auto scale by resolution | |
| Day & Night | Auto (Electrical) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Contrast Enhancement | SSDR (On / Off) |
| Digital Noise Reduction | SSNR5 (2D + 3D noise filter) (On / Off) |
| Digital Image Stabilization | On / Off |
| Defog | Off / Auto / Manual |
| Motion Detection | On / Off (8ea, 8 point polygonal zones) |
| Privacy Masking | On / Off (32ea, polygonal zones) |
| - Color : Grey / Green / Red / Blue / Black / White | |
| - Mosaic | |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level adjustment |
| LDC | On / Off (5 levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1 / 12,000sec) |
| Digital Zoom | 24x |
| Flip / Mirror | On / Off, Hallway view : 90˚ / 270˚ |
| Intelligent Video Analytics | Tampering, Loitering, Directional detection, Fog detection, Virtual line, Enter / Exit, |
| Appear / Disappear, Face detection, Motion detection, Defocus detection | |
| Alarm Triggers | Motion detection, Video analytics, Network disconnect |
| Alarm Events | File upload via FTP, E-Mail / Notification via E-Mail |
| Local storage (SD/SDHC/SDXC) at event triggers | |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10 / 100 / 1000 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG |
| Resolution | 5MP: 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 320 x 240 2MP : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264: 2M Max. 60fps, 5M 30fps at all resolutions |
| Motion JPEG: Max. 30fps | |
| Smart Codec | Manual mode (Area-based: 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.264 / H.265 : Target bitrate level control |
| MJPEG : Target bitrate level control | |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR |
| MJPEG : VBR | |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) login authentication, Digest login authentication. IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast mode |
| Edge Storage | SD / SDHC / SDXC 4 slots (Each CH) |
| - Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded. | |
| - Local PC for instant recording | |
| Application Programming Interface | ONVIF Profile S |
| SUNAPI (HTTP API) | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12 |
| Non-plugin Webviewer supported browser | |
| : Google Chrome 54, MS Edge 38, Mozilla Firefox 49(Windows 64bit only) , | |
| Apple Safari 9 (Mac OS X only) | |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| ELECTRICAL | |
| Input Voltage / Current | PoE+ (IEEE802.3at) |
| Power Consumption | 25.5W |
| MECHANICAL | |
| Color / Material | Ivory / Metal |
| Dimension | Ø 253 x 130 mm |
| Weight | 3.0 kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
