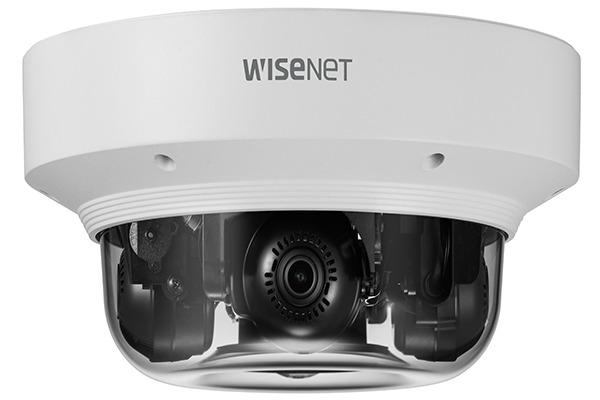

Camera IP Dome Multi-directional 2.0 Megapixel Hanwha Techwin WISENET PNM-9084QZ

Camera IP Dome Multi-directional 2.0 Megapixel Hanwha Techwin WISENET PNM-9084QZ

  • MS 000010089
  • WISENET
Giá : Liên hệ

Camera IP Dome Multi-directional 2.0 Megapixel Hanwha Techwin WISENET PNM-9084QZ

Camera IP Dome Multi-directional 2.0 Megapixel Hanwha Techwin WISENET PNM-9084QZ

- Cảm biến hình ảnh: 1/2.8 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

- Độ phân giải: 2.0 Megapixel.

- Độ nhạy sáng: Color: 0.04lux (F2.2, 1/30sec), BW: 0.004 lux (F2.2, 1/30sec).

- Ống kính: 3~6mm (2x) motorized varifocal.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng giảm nhiễu số SSNRV.

- Chức năng chống sương mù Defog.

- Chức năng ổn định hình ảnh số (Digital Image Stabilization).

- Hỗ trợ LDC.

- Hỗ trợ 4 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB (mỗi kênh).

- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nguồn điện ngõ vào: HPoE.

- Chất liệu/ màu sắc: Alumium/ White.

- Kích thước: Ø251 x 116.5mm.

- Trọng lượng: 3kg.

Features

- 2MP x 4ch Multi-directional camera.

- PTRZ support.

- Max. 60fps@2M (H.265, H.264), Max. 30fps@2M (MJPEG).

- 3.0~6.0mm (2x) motorized varifocal lens.

- H.265, H.264, MJPEG codec, Multi streaming.

- Video analytics, WiseStreamII.

- IP66, IK10, NEMA4X.

Đặc tính kỹ thuật

MdoelPNM-9084QZ
Video
Imaging Device1/2.8 inch 2MP CMOS: each CH
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 60fps/50fps (60Hz/50Hz) MJPEG: Max. 30fps/25fps (60Hz/50Hz)
Min. IlluminationColor: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec)
Lens
Focal Length (Zoom Ratio)3~6mm(2x) motorized varifocal
Max. Aperture RatioF2.2(Wide)-F3.1(Tele)
Angular Field of ViewH: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangeRemote adjustment (Max. 200cycles) 0~360˚ / 0~73˚ / 0~90˚
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNR
Digital Image StabilizationSupport
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDefocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Network
EthernetRJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStream
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(10 users) / Multicast Multiple streaming(Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming InterfaceONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform
General
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.13 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge StorageMicro SD/SDHC/SDXC 4slot 256GB(Each CH)
Memory5GB RAM, 1280MB Flash
Environmental & Electrical
Operating Temperature / Humidity-40°C~+55°C(-40°F~+131°F) / Less than 90% RH Start up should be above at -35˚C
Storage Temperature / Humidity-50°C~+60°C(-58°F~+140°F) / Less than 90% RH
CertificationIP66, IK10, NEMA4X
Input VoltageHPoE
Power ConsumptionMax. 33W, Typical 20W
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Dimensions251x116.5mm
Weight3kg

- Hãng sản xuất: Hanwha Techwin Hàn Quốc.

- Bảo hành: 24 tháng.
