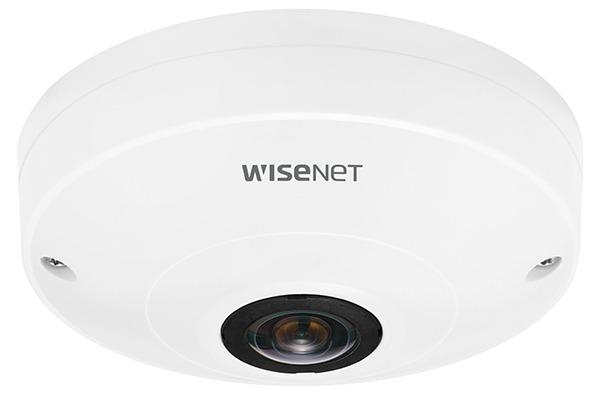

Camera IP Fisheye 12 Megapixel Hanwha Techwin WISENET QNF-9010
- Cảm biến hình ảnh: 1/2.3 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ phân giải camera quan sát: Max. 3008 x 3008 resolution.
- Ống kính: 1.08mm (fixed focal).
- Góc quan sát: H: 187° / V: 187° / D: 187°.
- Chức năng chống ngược sáng WDR 120dB.
- Hỗ trợ WiseStreamII.
- Hỗ trợ Digital PTZ.
- Chức năng đếm số lượng người People counting.
- Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.
- Chức năng cấp nguồn qua mạng PoE.
- Kích thước: Ø99 x 49mm.
- Trọng lượng: 370g.
- Chất liệu/ màu sắc: Plastic/ White.
Đặc tính kỹ thuật
| Model | QNF-9010 |
| Video | |
| Imaging Device | 1/2.3 inch 12M CMOS |
| Resolution | Overview: 3008x3008, 640x640 |
| Double panorama: 2560x1280, 1920x960, 1280x640, 1024x512, 640x320 | |
| Single panorama: 3200x800, 2560x640, 1920x480, 1280x320, 1024x256 | |
| Quad view: 2560x1920, 1920x1440, 1280x960, 1024x768, 640x480 | |
| Max. Framerate | H.265/H.264: |
| Overview-Max. 30fps/25fps@3008x3008 (60Hz/50Hz), | |
| Double panorama-Max. 28fps/25fps@2560x1280 (60Hz/50Hz) | |
| Single panorama-Max. 28fps/25fps@3200x800(60Hz/50Hz) | |
| MJPEG: Max. 5fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.39 Lux (F2.2, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.08mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.5m(1.64ft) |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, Rectangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast |
| Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Device Certificate(Hanwha Techwin Root CA) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 |
| Recommended Browser: Google Chrome | |
| Supported Browser: MS Explore11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari(Mac OS X only) | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2048MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +40°C(+14°F ~ +104°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP42 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 7.7W, typical 6.4W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Dimensions | Ø99x49mm |
| Weight | 370g |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
