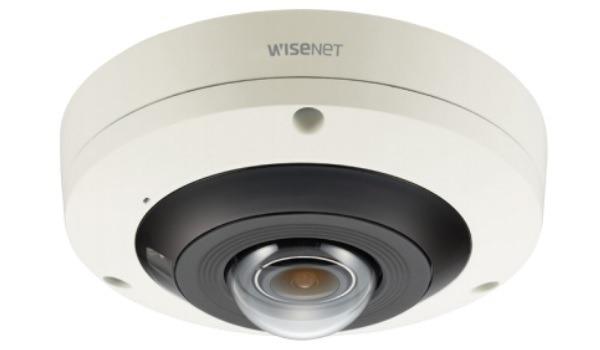

Camera IP Fisheye 4K hồng ngoại 12 Megapixel Hanwha Techwin WISENET PNF-9010R/VAP
- Cảm biến hình ảnh: 1/1.7 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 128GB.
- Ống kính camera ip: 2.1mm (fixed).
- Góc quan sát theo chiều ngang: 180º, theo chiều dọc: 180º, theo phương chéo: 180º.
- Zoom số: 16x.
- Tầm quan sát hồng ngoại: 15 mét.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống sương mù Defog.
- Chức năng phát hiện chuyển động: Off / On (8ea polygonal zones).
- Chức năng phát hiện vùng riêng tư: Off / On (8ea, Polygonal) - Color: Gray / Green / Red / Blue / Black / White.
- Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).
- Chức năng giảm nhiễu số 2D + 3D.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng phân tích Video thông minh.
- Chức năng đếm số người (People counting).
- Nguồn điện cung cấp: 12VDC ± 10%.
- Chức năng cấp nguồn qua mạng PoE.
- Công suất tiêu thụ: 12VDC: Max. 11W, PoE: 12W.
- Kích thước: Ø146.0 x 63.4mm.
- Trọng lượng: 805g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/1.7 inch 12.4M CMOS |
| Total Pixels | 4,168 x 3,062 |
| Effective Pixels | 2,992 x 2,992 |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.3Lux (F2.2, 30IRE), B/W: 0Lux (IR LED on) |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 714 x 480(N), 702 x 576(P), for installation |
| DIP connector type | |
| Lens | |
| Focal length/ Max. Aperture Ratio | 2.1mm fixed / F2.2 |
| Angular Field of View | H: 180° / V: 180° / D: 180° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus / Manual - Remote control via network |
| Lens / Mount Type | Fixed lens / Board type |
| Operation | |
| IR LED / Viewable Length | 15m (49.21ft) |
| Camera Title | Off / On (Displayed up to 60 characters) |
| - W/W: English / Numeric / Special characters | |
| - China: English / Numeric / Special / Chinese characters | |
| - Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC/ WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Off/ On) |
| Digital Noise Reduction | SSNR (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea polygonal zones) |
| Privacy Masking | Off / On (8ea, Polygonal) - Color: Gray / Green / Red / Blue / Black / White |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Digital Zoom | 16x, Digital PTZ (Preset, Group) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection with metadata |
| Alarm I/O | Input 1ea/ Output 1ea |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output |
| Viewing Composition | Camera side: Fisheye, Single panorama, Double panorama, Fisheye + 4 PTZ |
| Quad view, Fisheye + 8 PTZ | |
| Pixel Counter | Support (Plug-in viewer only |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265/H.264/MJPEG |
| Resolution | Fisheye: 4000 x 3000, 2992 x 2992, 2560 x 2560, 2048 x 2048, 1280 x 1280, 640 x 640 |
| Double panorama: 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360 | |
| Single panorama: 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 360 | |
| Quad view: 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480 | |
| Max. Frame rate | H.265/H.264: 20fps@4000 x 3000, 25fps@under 2992 x 2992, MJPEG: Max. 15fps |
| Smart Codec | Manual mode (Area-based: 5ea) |
| Video Quality Adjustment | H.265 / H.264: Target bitrate level control, MJPEG: Quality level control |
| Bitrate Control Method | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio In | Selectable (Mic in / Line in / Built-in mic) |
| Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm | |
| Audio Out | Line out (3.5mm mono jack), Max output level: 1 Vrms |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz | |
| Audio Communication | Bi-directional |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Edge Storage | SD/SDHC/SDXC (up to 128GB) |
| - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded | |
| - Camera can detect automatically when the memory is connected | |
| - Memory status display (normal/error/active/formatting/lock) | |
| NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only) | |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API) v2.0, Wisenet Open Platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11. Plug-in free Webviewer |
| - Supported Browser: Google Chrome 47, MS Edge 20. Plug-in Webviewer | |
| - Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only | |
| Central Management Software | SmartViewer |
| ELECTRICAL | |
| Input Voltage / Current | 12VDC ±10%, PoE (IEEE802.3af, Class3) |
| Power Consumption | 12VDC: Max. 11W, PoE: 12W |
| Color / Material | Ivory / Plastic |
| Dimensions | Ø146.0 x 63.4mm |
| Weight | 805g |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
