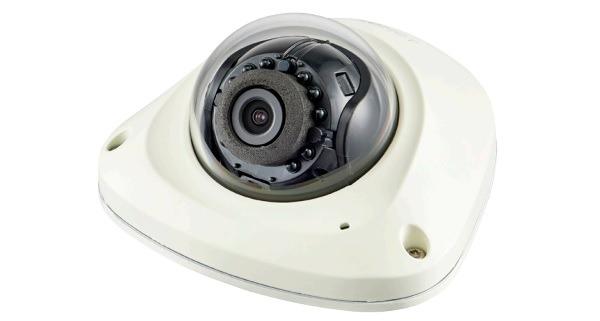

Camera IP hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET SNV-L6014RM/KAP
-Cảm biến hình ảnh: 1/2.9 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel.
-Độ nhạy sáng: 0.15Lux@F1.8 (Color), 0 Lux @F1.8 (B/W: IR LED ON).
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC dung lượng lưu trữ 32GB.
-Ống kính: 3.6mm fixed.
-Tầm quan sát hồng ngoại: 15 mét.
-Góc quan sát theo ngang: 86.5° / theo chiều dọc: 47.8° / phương chéo: 101.2°
-Tích hợp mic.
-Chức năng quan sát Ngày và Đêm.
-Chức năng phát hiện chuyển động: Off / On (4ea rectangular zones).
-Chức năng vùng riêng tư: Off / On (6ea rectangular zones).
Ethernet: Kết nối M12 (10/100Base-T).
-Chức năng LDC (Lens Distortion Correction): Off / On (5 levels with min / max).
-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).
-Đa ngôn ngữ.
-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Chức năng cấp nguồn qua mạng PoE.
-Kích thước: 99 x 52 x 100mm.
-Trọng lượng: 300g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.9 inch 2.19M CMOS |
| Total Pixels | 2,000(H) x 1,121(V) |
| Effective Pixels | 1,984(H) x 1,105(V) |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.15Lux (1/30sec, F1.8), 0.003Lux (2sec, F1.8). B/W: 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed |
| Max. Aperture Ratio | F1.8 |
| Angular Field of View | H: 86.5° / V: 47.8° / D: 101.2° |
| Min. Object Distance | 0.5m (1.64ft) |
| Lens Type | Fixed |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
| Lens Type / Mount Type | DC auto iris, P-Iris / Board-in type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Viewable Length | 15m |
| Camera Title | Off / On (Displayed up to 15 characters) |
| Day & Night | True Day & Night |
| Backlight Compensation | Off / BLC |
| Contrast Enhancement (DWDR) | SSDR (Samsung Super Dynamic Range) (Off / On) |
| Digital Noise Reduction | SSNR (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | SSNR (Off / On) |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4ea rectangular zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Motion detection with metadata, Tampering, Defocus detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detection, Video analytics, Network disconnection, Alarm input |
| Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output |
| Network | |
| Ethernet | M12 connector (10/100BASE-T) |
| Video Compression Format | H.264, MJPEG |
| Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 |
| Max. Framerate | H.264: Max. 30fps at all resolutions |
| MJPEG: Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768 Max. 15fps at other resolution | |
| Video Quality Adjustment | H.264: Compression level, Target bitrate level control, MJPEG: Quality level control |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Audio I/O | Line-in, Line-out, Built-in mic |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Audio Communication | Bi-directional audio |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 6 users at unicast mode |
| Storage | micro SD/SDHC max. 32G, NAS |
| - Motion images recorded in the SD memory card can be downloaded | |
| - Manual recording at local PC | |
| Application Programming Interface | ONVIF profile S, SUNAPI, SVNP 1.2 |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian |
| Web Viewer | Supported OS: Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11. Supported Browser : Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) |
| Central Management Software | SmartViewer |
| Ingress Protection | IP66 |
| Vibration Resistance | EN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4.4:2012, EN61000-4-5:2014, EN61000-4-6:2009, EN50155:2007, NEMA 4x |
| Vandal Resistance | IK10 |
| ELECTRICAL | |
| Input Voltage / Current | PoE (IEEE802.3af, Class2) |
| Power Consumption | Max. 5.8W |
| Color/ Material | Ivory / Aluminum |
| Dimensions | 99.0 x 52.0 x 100.0mm |
| Weight | 300g |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
