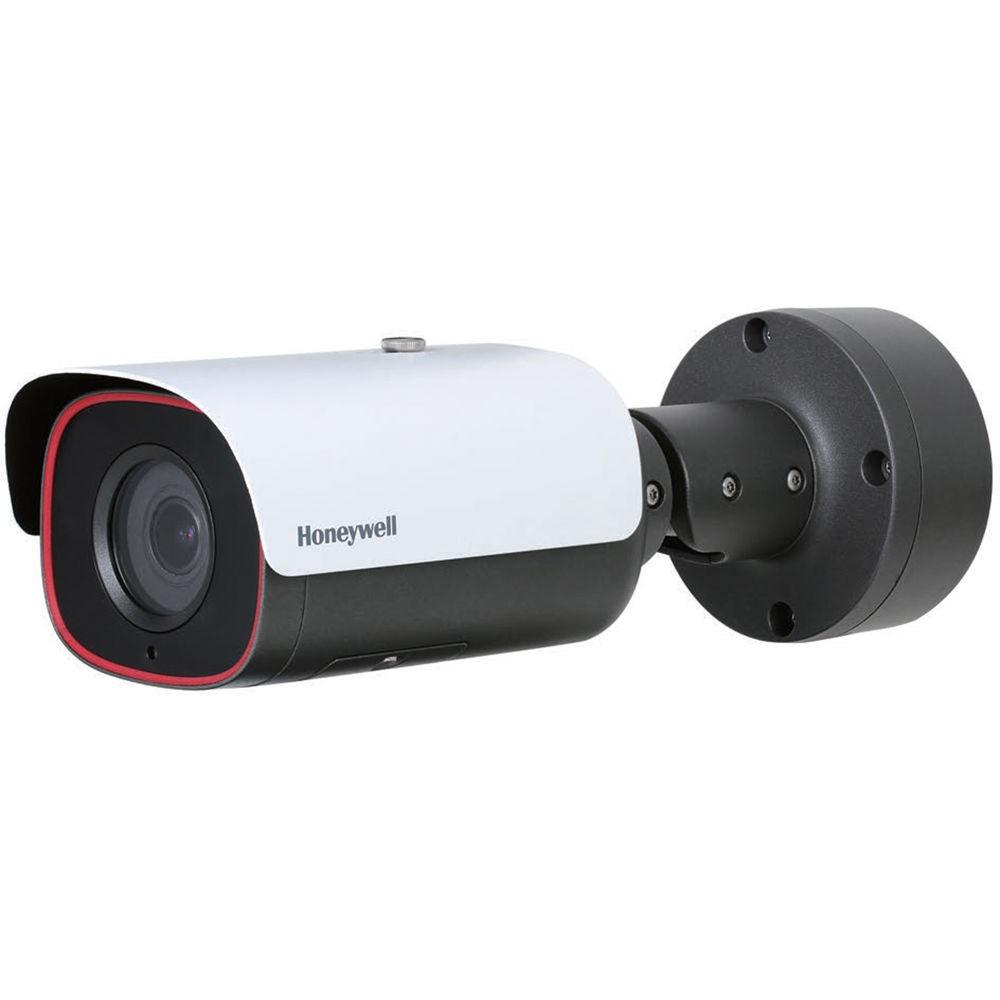

Camera IP hồng ngoại 2.0 Megapixel HONEYWELL HBL6GR2-LPR
- Cảm biến hình ảnh: 1/1.8-inch progressive CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 4.1-16.4mm, MFZ, F1.53.
- Tốc độ khung hình: Lên đến 30 fps.
- Tầm quan sát hồng ngoại: 50 mét.
- Độ nhạy sáng tối thiểu: 0.004 lux color @ F1.53, 0 lux B/W with IR LEDs on @ F1.53.
- Thẻ nhớ: Up to 128 GB microSDHC card, Class 10 (not included).
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn va đập: IK10.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC/24VAC.
Đặc tính kỹ thuật
| Model | HBL6GR2-LPR |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/1.8-inch 6MP progressive CMOS (2MP used) |
| Minimum Illumination | 0.004 lux color @ F1.53, 0 lux B/W with IR LEDs on @ F1.53 |
| S/N Ratio | ≥ 50 dB |
| Electronic Shutter Speed | Auto, Manual, 1/30-1/100,000s |
| IR Distance | Up to 164 ft. (50 m), depending on scene reflectance |
| Day/Night | Auto (ICR)/Color/BW |
| Backlight Compensation | BLC/HLC/DWDR/SSA |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Customize Region |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | Up to 4 configurable areas |
| Electronic Image Stabilzation | Off/On |
| Defog | Auto/Manual/Off |
| Lens | 4.1-16.4mm, MFZ, F1.53 |
| Angle Of View | Horizontal: 86° - 35° |
| Audio/Two-Way | Line In/Out |
| Alarm Input/Output | 2/1 |
| Analog Output Support | BNC |
| Ethernet | RJ-45 (100/1000Base - T) |
| IP SPECIFICATIONS | |
| Video Compression | H.265/H.264/MJPEG; Bit rate control (CBR and VBR) |
| Resolution | - 16:9: 1080p (1920×1080)/720p (1280×720) - 4:3: 1.3M (1280×960)/ VGA (640×480)/ CIF (352×288/352×240) - Other: D1 (704×576/704×480) |
| Frame Rate | - Main Stream: 1080p (1920×1080)/ 1.3M(1280×1080)/ 720p (1280×720) at 1-25/30 fps - Sub Stream: D1/CIF/VGA up to 25/30 fps - Third Stream: 1080p/720p/D1 up to 25/30 fps |
| Audio Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Audio Stream | Full duplex, simplex |
| Supported Web Browsers | Internet Explorer® (11.0+), Firefox, Chrome |
| Supported OS | Windows® 7 32-bit/64-bit |
| Compatibility | ONVIF Profile S, G and Q |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP v2/v3, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, Multicast, ONVIF |
| Maximum Users Access | 20 users |
| Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User sccess log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCI-DSS compliance, Hardware chipset for private key |
| Event | No SD card, SD card error, SD card capacity warning, Network disconnection, IP address conflict, Illegal access |
| Event Notification | Record (SD card and FTP), Relay output, Email, Snapshot |
| Analytics | Pre-installed and licensed for vehicle License Plate Recognition |
| Micro SD | Up to 128 GB microSDHC card, Class 10 (not included) |
| Micro SD Function | - Event trigger recording - Continuous and scheduled recording - Automatic recording when network fails |
| Languages Supported By The User Interface | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Supply | PoE+ (802.3at) Class 4, 12 VDC/24 VAC |
| AC Frequency | 50/60 Hz |
| Power Consumption | 18 W max. (IR LEDs on and motorized lens working) |
| MECHANICAL | |
| Dimensions (W×H×D) | 4.3-inch × 4.1-inch× 11.1-inch (110 × 105 × 281mm) |
| Weight | Product: 4.9 lb. (2.2 kg); Package: 6.4 lb. (2.9 kg) |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Color | RAL 9003 (White) and RAL 7022 (Grey) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
