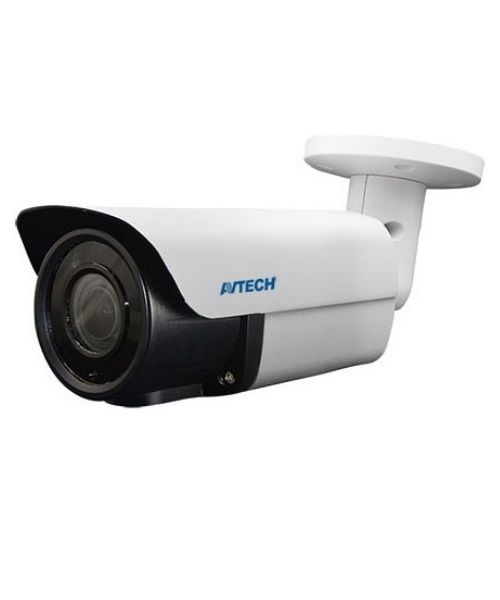

Camera IP hồng ngoại 3.0 Megapixel AVTECH DGM3545SCHT
- Cảm biến hình ảnh: 1/2.7” CMOS.
- Độ phân giải: 2304×1296.
- Hỗ trợ 2 luồng video, ống kính điều chỉnh qua phần mềm 2.8~12 mm.
- Tầm xa hồng ngoại camera quan sát được lên đến 30 mét.
- Độ nhạy sáng: 0.01 Lux (IR LED off), 0 Lux (IR LED on).
- Tính năng thông minh: Human Body detection + Tự động kích hoạt báo động khi phát hiện Người xâm nhập vào vùng + Giảm báo động giả từ vật thể là chó, mèo, cây, mưa....
- Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống nhiễu 3DNR, chống ngược sáng DWDR / HLC / 2D DNR / 3D DNR / AWB / AGC.
- Tích hợp Micro thu âm.
- Chuẩn Onvif quốc tế.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ tên miền miễn phí trọn đời.
- Nguồn cấp: DC12V (±25%) và POE.
Đặc tính kỹ thuật
| Model | DGM3545SCHT |
| Device | |
| Image Sensor | 1/2.7” CMOS |
| Max. Resolution | 2304x1296 |
| Lens | f2.8 ~ 12mm / F1.6 ~ F2.2 |
| Viewing Angle | Tele 40˚ ~ Wide 117˚ (Diagonal) |
| Min Illumination | 0.01 Lux (IR LED off), 0 Lux (IR LED on) |
| Shutter Speed | AUTO, 1/25s ~ 1/100000s |
| IR LED | 20 units |
| IR Effective Distance | Up to 30 meters |
| Day / Night | Yes |
| WDR Mode | DWDR |
| RTC (real-time clock) | Yes |
| Video | |
| Compression | H265 / H.264 |
| Video Resolution | Main Stream: 3MP (2304x1296) / 2MP (1080P) / 720P / D1 Sub Stream: D1 / VGA / 640x360 / CIF |
| Frame Rate | 3MP @ 25FPS / 2MP @ 30FPS |
| Video Profile | High profile / Main profile / Base profile |
| Multiple Video Streaming | 2 streams |
| Bitrate Control | 32Kbps - 8Mbps, VBR/CBR |
| Image Enhancement | DWDR / HLC / 2D DNR / 3D DNR / AWB / AGC |
| Day / Night Switch | Auto / Color / (B/W) / Timing |
| Forced Anti-flicker | Yes |
| White Balance | Auto |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| OSD Title | Location / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Microphone built-in | Yes |
| Encoding | G.711-u / G.711-a |
| Audio Adjustment | Yes |
| Alarm & Event | |
| Detection Mode | Motion / Human Detection |
| Detection Schedule | Yes |
| Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 |
| Network | |
| LAN Port | RJ45 connector x 1 / 4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP |
| ONVIF Compatible | Onvif 17.06 compatible |
| Number of Online Users | 6 |
| Remote Access | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| General | |
| Web Interface Language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean |
| Operating Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10%-90%RH |
| POE | IEEE 802.3af |
| Power Source (±10%) | PoE / DC12V |
| Power Consumption (±10%) | < 8 W |
| Weight | 1.05kg |
| Casing | IP67 |
- Bảo hành: 18 tháng.
