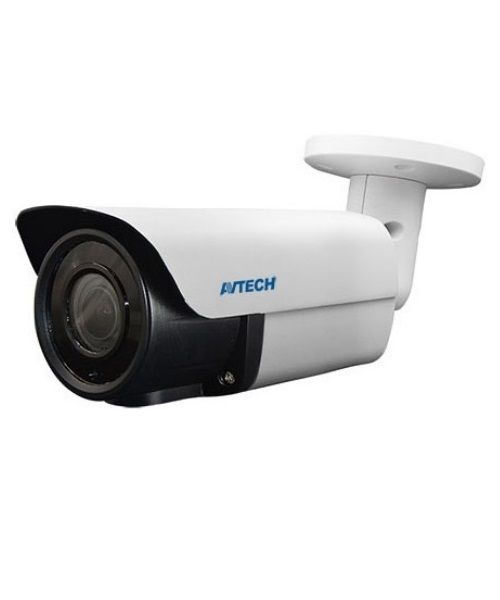

Camera IP hồng ngoại 5.0 Megapixel AVTECH DGM5545GCAT
- Cảm biến hình ảnh: 1/3” CMOS.
- Độ phân giải: 5MP @ 25FPS (2560x1944).
- Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.
- Hỗ trợ 2 luồng video.
- Tầm xa hồng ngoại camera quan sát được lên đến 30 mét.
- Độ nhạy sáng: 0.001 Lux (IR LED off), 0 Lux (IR LED on).
- Ống kính điều chỉnh qua phần mềm 2.8~12 mm.
- Chế độ Human Detection phân biệt giữa người và động vật và vật thể.
- Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống ngược sáng DWDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC.
- Tích hợp Micro thu âm.
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời.
- Nguồn cấp: DC12V và POE.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Model | DGM5545GCAT |
| Device | |
| Image Sensor | 1/3” CMOS |
| Max. Resolution | 2592 x 1944 |
| Lens | f2.8 ~ 12mm / F1.6 ~ F2.2 |
| Viewing Angle | Tele 40° ~ Wide 117° (Diagonal) |
| Min Illumination | 0.01 Lux (IR LED off), 0 Lux (IR LED on) |
| Shutter Speed | AUTO, 1/25s ~ 1/100000s |
| IR LED | 20 units |
| IR Effective Distance | Up to 30 meters |
| Day / Night | Yes |
| WDR Mode | DWDR |
| RTC (real-time clock) | Yes |
| Video | |
| Compression | H265 / H.264 |
| Video Resolution | Main Stream: 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P Sub Stream: D1 / VGA / 640x360 / 480x360 / CIF |
| Frame Rate | 5MP @ 25FPS |
| Video Profile | High profile / Main profile / Base profile |
| Multiple Video Streaming | 2 streams |
| Bitrate Control | 32Kbps - 8Mbps, VBR/CBR |
| Image Enhancement | DWDR / HLC / 2D DNR / 3D DNR / AWB |
| Day / Night Switch | Auto / Color / (B/W) / Timing |
| Forced Anti-flicker | Yes |
| White Balance | Auto / Manual |
| Image Orientation | Flip / Mirror |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| OSD Title | Location / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Microphone built-in | Yes |
| Encoding | G.711-u / G.711-a |
| Audio Adjustment | Yes |
| Alarm & Event | |
| Detection Mode | Motion / Human Detection |
| Detection Schedule | Yes |
| Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 |
| Network | |
| LAN Port | RJ45 connector x 1 / 4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP |
| ONVIF Compatible | Onvif 17.06 compatible |
| Number of Online Users | 6 |
| Remote Access | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| General | |
| Web Interface Language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean |
| Operating Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10%-90%RH |
| POE | IEEE 802.3af |
| Power Source (±10%) | PoE / DC12V |
| Power Consumption | < 8W (±10%) |
| Weight | 1.05kg |
| Casing | IP67 |
- Bảo hành: 18 tháng.
