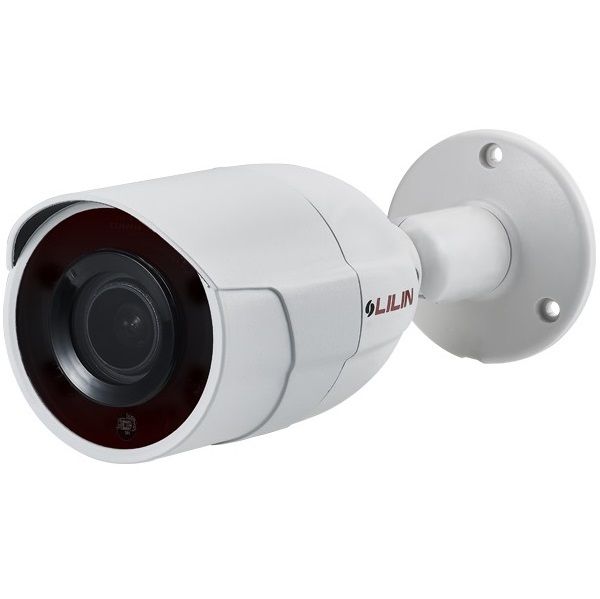

Camera IP hồng ngoại 5.0 Megapixel LILIN P5R8852E2
- Cảm biến hình ảnh: 1/2.7″ CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén: H.265/HEVC và H.264/AVC.
- Ống kính cố định: 2.8mm.
- Giảm nhiễu 3D noise reduction (MCTF).
- Tính năng chống ngược sáng DWDR.
- Tầm quan sát hồng ngoại: 35 mét.
- Chức năng quan sát Day & Night (IR cut removable).
- Hỗ trợ chuẩn ONVIF Profile S.
- Tiêu chuẩn chống bụi và nước: IP67 (camera thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: DC12V ±10% / PoE (IEEE 802.3af compliant).
Thông số kỹ thuật
| Model | P5R8852E2 |
| Min. illumination/Low Light Mode (Colour) | Color: 0.04 Lux at F2.0; B/W: 0.005 Lux at F2.0; 0 Lux with IR LED ON |
| Focal Length | 2.8mm |
| Iris | F2.0 |
| Iris Control | Fixed IRIS |
| Angle of View | 106.6 (H), 78.5° (V), 136.1° (D) |
| Beam Spread | 60° |
| Max IR distance | 35m |
| Pick Up Element | 1/2.7″ CMOS image sensor |
| Effective pixels | 2608(H) X 1960(V) = 5,111,680 (Pixels) |
| Light sensor | Yes |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW/300mA, 450mW), Terminal block |
| Video Compression | H.265/HEVC Main Profile, H.264 Main Profile, Motion JPEG |
| Number of streams | 3 |
| Access | Multiple user access levels with password protection |
| User accounts | 7 simultaneous users |
| Resolution | 5MP(2592 × 1920), 4MP(2304 × 1728), 3MP(2304×1280), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), 720 × 576, 720 × 480, 720 × 384, VGA(640 × 480), CIF(352 × 256) |
| Maximum Frame Rate | 2592×1920 / 20 fps |
| Infrared Cut Filter | Auto / Schedule / Day (Color) / Night (Mono) |
| White Balance | Auto/ Manual (adjustable) |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up | Off / x2 / x4 |
| Sense Up+ | Yes |
| Auto Gain Control | 36 dB Variable Gain |
| S / N Ratio | More than 48dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto (x2, x3, x4) |
| High Dynamic Range (HDR) | Up to 70dB (by DWDR mode) |
| EV (Exposure Value) | Adjustable |
| Privacy Masking | Off / On (4 zones) color mask configurable |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| Video Management | ONVIF Profile S / LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| Alarm event triggers | Motion / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / SD Card / Alarm / Global Counter / Virtual Input |
| Network Interface/ Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SSL/TLS |
| Max number of online users | 7 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Operating temperature | -30°C ~ +50°C (-22°F ~ 122°F) |
| Storage temperature | -25°C ~ +60°C (-13°F ~ 140°F) |
| Operating humidity | 0% ~ 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 (Casing) |
| Dimensions | 75(W) × 75(H) × 189(D) mm |
| Weight | 555g |
| Casing Material | Aluminum alloy |
| Window / Glass Thickness | Ø61 Heat Resistant Glass |
- Bảo hành: 24 tháng.
