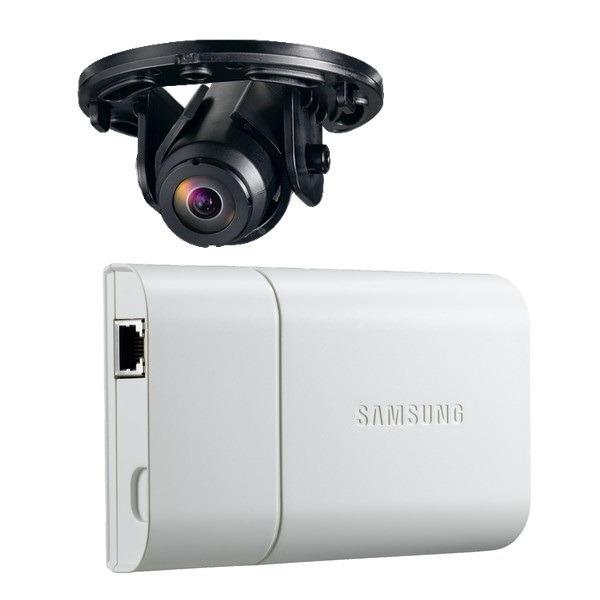

Camera IP ngụy trang 2.0 Megapixel Hanwha Techwin WISENET SNB-6010B/KAP
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel.
-Độ nhạy sáng: 0.3Lux (1/30sec, F2.5, 50IRE) (Color).
-Ống kính: 4.6mm pinhole.
-Góc quan sát: 71º (H)/ 38º (V).
-Ngõ vào Audio: Tích hợp mic.
-Ngõ ra Audio: 3.5mm stereo mini jack).
-Hỗ trợ âm thanh: 2 chiều.
-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).
-Chức năng giảm nhiễu số 2D + 3D.
-Chức năng ổn định hình ảnh số (Digital Image Stabilization): On/ Off.
-Chức năng phát hiện chuyển động: Off / On (4ea 4 points polygonal zone).-Chức năng vùng riêng tư: Off / On (32 zones with 4 points of polygonal).
-Chức năng điều chỉnh độ lợi AGC.
-Chức năng chống sương mù Defog.
-Hỗ trợ khe cắm thẻ nhớ: Micro SD/SDHC/SDXC.
-Đa ngôn ngữ.
-Nguồn điện cung cấp: 12VDC.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 7.5W.
-Kích thước: Ø24.0 x 42.4mm.
-Trọng lượng: 80g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch CMOS |
| Effective Pixels | 1,952(H) x 1,116(V) |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.3Lux (1/30sec, F2.5, 50IRE) |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| DIP connector type | |
| Lens | |
| Focal length | 4.6mm pinhole |
| Max. Aperture ratio | F2.5 |
| Angular Field of View | H: 71°/ V: 38° |
| Min. Object Distance | 0.3m |
| Mount Type | RJ-12 connected with main unit |
| Operation | |
| Camera Title | Off / On (Displayed up to 45 characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Samsung Super Dynamic Range) (Off / On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Motion Detection | Off / On (4ea 4 points polygonal zone) |
| Privacy Masking | Off / On (32 zones of rectangular) |
| Gain Control | Off / Low / Middle / High |
| Defog | Off / Auto / Manual |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection - Support metadata |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Max. Frame rate | H.264: Max. 30fps at all resolutions |
| MJPEG: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: Max. 15fps | |
| 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180: Max. 30fps | |
| Video Quality Adjustment | H.264: Target bitrate level control, MJPEG: Quality level control |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio In | Selectable (Mic in / Line in) (Built-in mic) |
| Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm | |
| Audio Out | Line out (3.5mm stereo mini jack), Max output level: 1Vrms |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication | Bi-directional audio (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 15 users at unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) |
| Application Programming Interface | ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek |
| Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8, MAC OS X 10.7 |
| Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11). | |
| Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25). | |
| Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7). Mac OS X only | |
| Central Management Software | SmartViewer, SSM |
| ELECTRICAL | |
| Input Voltage / Current | PoE (IEEE802.3af), 12V DC |
| Power Consumption | PoE: Max. 7.5W, 12VDC: Max. 6.5W |
| Color / Material | Black, Ivory / Aluminium |
| Dimensions | Ø24.0 x 42.4mm |
| Weight | 80g |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
