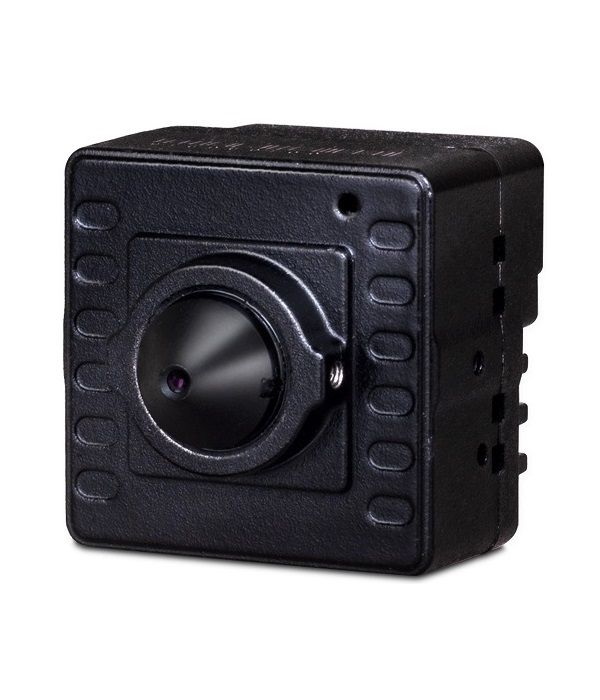

Camera IP ngụy trang 2.0 Megapixel Provision-ISR MC-322IPE-37
- Cảm biến hình ảnh: 1/2.8” CMOS.
- Độ phân giải: 2.0 Megapixel.
- Ống kính: 3.7mm (89°).
- Chuẩn nén: H.265S/H.264S, H.265+/H.264+/H.265/H.264/MJPEG.
- Tính năng quan sát Ngày&Đêm ICR.
- Chức năng chống ngược sáng True WDR (120dB).
- Chức năng bù ngược sáng BLC.
- Chức năng chống sáng chói HLC.
- Tính năng thông minh: Nhận diện vật thể (Object Recognition), Phát hiện khuôn mặt (Face Detection).
- Tích hợp Micro.
- Hỗ trợ chuẩn ONVIF.
- Khe cắm thẻ nhớ SD 256GB.
- Nguồn điện: 12VDC/~400mA.
Thông số kỹ thuật
| Model | MC-322IPE-37 |
| Image Sensor | 1/2.8” CMOS (16:9) |
| Effective Pixels | 1920x1080 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Frame Rate | 1-25/30FPS |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on |
| Audio compression | G.711A/G.711U |
| Communication | One-way Audio |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Analytics | General Alanlytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting AI (Face Detection): 10 Faces per frame |
| Video Compression | H.265S/H.264S, H.265+/H.264+/H.265/H.264/MJPEG |
| Resolution | 2MP / 1MP / D1 (704x576) / QVGA (480x240) / CIF (352x288) |
| Multi-Stream | Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps) |
| Bit rate | 64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens (Field of View) | 3.7mm (89°) |
| Iris | Fixed Iris |
| Lens Mount | M12 mount |
| Water Proof | None |
| Bracket | 2-Axis Bracket |
| Dimensions | 30x29.5x30mm |
| Weight | ~80g |
| Network | RJ45 |
| Power | DC Socket |
| Analog Video Output | No |
| Audio Connectivity | Built-in Microphone |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256Gb) |
| Hard Reset Button | Yes |
| Alarm | No |
| Remote Monitoring | IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | No |
| Power Supply | DC12V/~400mA |
| Work Environment | -30°C~60°C, 10%~90% Humidity |
- Bảo hành: 24 tháng.
