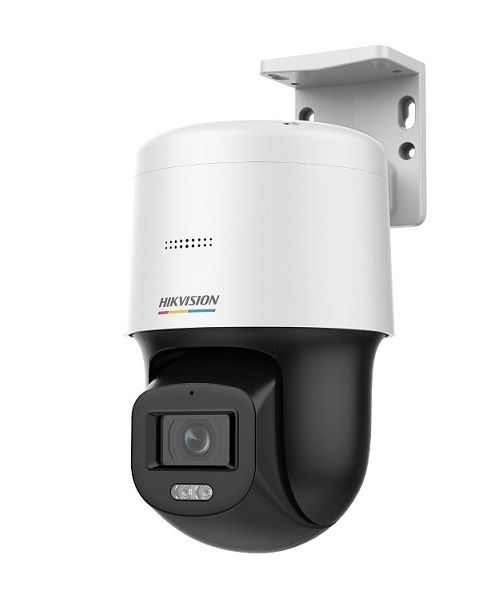

Camera IP Speed Dome 2.0 Megapixel HIKVISION DS-2DE2C200SCG-E(F0)
- Cảm biến hình ảnh: ColorVu 1/2.7″ Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng: Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light.
- Chuẩn nén video: H.265, H.264, MJPEG.
- Ống kính: 2.8/4mm.
- Xoay ngang (Pan): 0° ~ 340°.
- Xoay dọc (Tilt): -5° ~ 105°.
- Tích hợp microphone và loa, hỗ trợ đàm thoại 2 chiều.
- Khe cắm thẻ nhớ microSD/microSDHC/microSDXC lên đến 256GB.
- Hỗ trợ các tính năng: DWDR, BLC, HLC, 3D DNR.
- Đèn ánh sáng trắng lên đến 30m cho hình ảnh có màu ban đêm.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Model | DS-2DE2C200SCG-E(F0) |
| Camera | |
| Image Sensor | 1/2.7 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light |
| Max. Resolution | 1920 × 1080 |
| Lens | |
| Lens | 2.8 mm/4 mm |
| FOV | 2.8 mm, horizontal FOV 106.1°, vertical FOV 55.8°, diagonal FOV 126.5° 4 mm, horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1° |
| Aperture | F1.0 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 0° to 340° |
| Movement Range (Tilt) | -5° to 105° |
| Pan Speed | configurable from 4° to 21°/s |
| Tilt Speed | configurable from 4° to 19°/s |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Image | |
| Image Setting | Saturation, brightness, contrast, sharpness |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
| API | Open Network Video Interface, ISAPI, SDK |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection |
| Alarm Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card |
| General | |
| General Function | Mirror, password protection, watermark |
| Power Supply | 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10 W |
| Protection | IP66 |
| Operating Condition | With supplement light on: -30 °C to 40 °C. Humidity 95% or less (non-condensing) With supplement light off: -30 °C to 50 °C. Humidity 95% or less (non-condensing) |
| Dimensions | 162 × 120 × 234.2 mm |
| Weight | 780 g |
- Bảo hành: 24 tháng.
