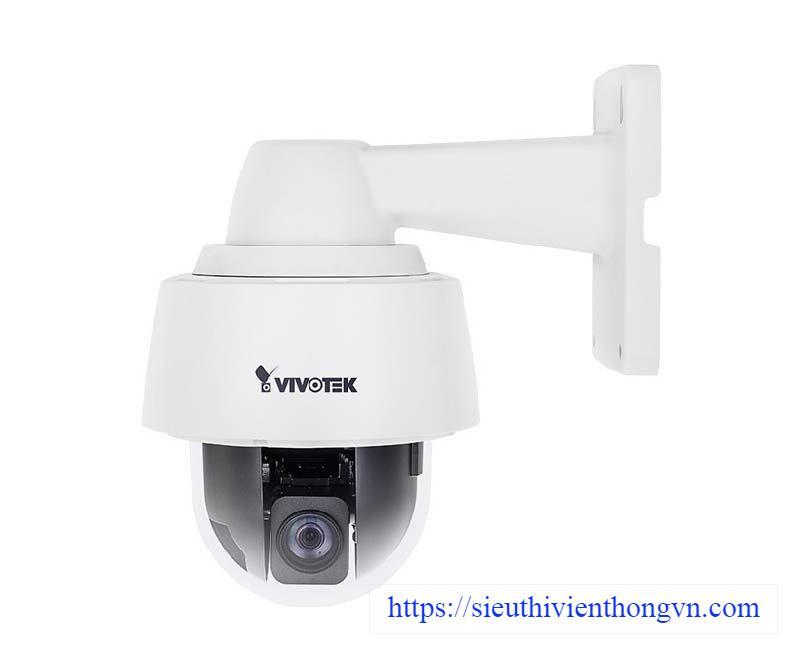

Camera IP Speed Dome 2.0 Megapixel Vivotek SD9361-EHL
- Cảm biến hình ảnh: 1/3 inch Progressive CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ phân giải: 1920 x 1080 (2.0 Megapixel).
- Ống kính: f = 4.7 ~ 94 mm.
- Zoom quang: 20x.
- Zoom số: 128x.
- Xoay ngang: 360º endless.
- Xoay dọc: 110º.
- Tốc độ: 0.05º ~ 450º/sec.
- Auto-iris: DC-iris.
- Tích hợp khe cắm thẻ nhớ SD/SHDC/SDXC.
- Kết nối mạng: 10 Base-T/100 BaseTX/1000 BaseTX Ethernet (RJ45).
- Thiết lập 256 vị trí/ 128 vị trí mỗi vòng.
- Hỗ trợ âm thanh 2 chiều.
- Tự động theo dõi đối tượng.
- Số người kết nối truy cập đồng thời: 10 người.
- Hỗ trợ giao thức: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X.
- Chức năng camera quan sát Ngày và đêm cắt lọc IR (IR-CUT filter).
- Smart stream II tối ưu hóa hiệu quả băng thông.
- Chức năng giảm nhiễu số 3DNR.
- Chức năng chống ngược sáng WDR.
- Chức năng chống sương mù Defog.
- Chức năng cấp nguồn qua mạng UPoE.
- Tiêu chuẩn chống bụi nước và bụi: IP68/ NEMA 4X (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Model | SD9361-EHL |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Image Sensor | 1/3 inch Progressive CMOS |
| Maximum Resolution | 1920 x 1080 (2MP) |
| Lens Type | 20x Optical Zoom, Auto Focus |
| Focal Length | f= 4.7 ~ 94 mm |
| Aperture | F1.6 ~ F3.5 |
| Auto-iris | DC-iris |
| Field of View | 3º ~ 55º (Horizontal) |
| 2º ~ 33º (Vertical) | |
| 3º ~ 63º (Diagonal) | |
| Shutter Time | 1/8 sec. to 1/30,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.26 Lux @ F1.6 (Color) |
| 0.01 Lux @ F1.6 (B/W) | |
| Pan Speed | 0.05º ~ 450º/sec. |
| Pan Range | 360º endless |
| Tilt Speed | 0.05º ~ 450º/sec. |
| Tilt Range | 110º |
| Preset Locations | 256 preset locations, 128 presets per tour |
| Pan/tilt/zoom Functionalities | 128x digital zoom (4x on IE plug-in, 32x built-in) |
| Auto pan mode | |
| Auto patrol mode | |
| On-board Storage | Slot type: SD/SDHC/SDXC card slot |
| Seamless Recording | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: |
| 60 fps @ 1920x1080 | |
| MJPEG: | |
| 30 fps @ 1920x1080 | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 53 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control; Smart Stream II |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24); Scheduled profile settings, EIS, 3DNR, defog |
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input |
| External line output | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX/1000 BaseTX Ethernet (RJ45) |
| ONVIF | Supported |
| Video Motion Detection | Five-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card |
| File upload via HTTP, SMTP, FTP, NAS server and SD card | |
| Connectors | RJ45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| 24VDC/ 24VAC power input | |
| Digital input x 4 | |
| Digital output x 2 | |
| RS485 | |
| LED Indicator | System power and status indicator |
| Power Input | 24VDC |
| 24VAC | |
| 60W UPoE | |
| Power Consumption | Max. 48/26 W (Heater on/off) |
| Dimensions | Ø 162 x 221 mm |
| Weight | 2.95 kg |
| Casing | Weather-proof IP68-rated, Vandal-proof IK10-rated, and NEMA 4X-rated mated housing |
| Safety Certifications | CE, FCC Class A, VCCI, C-tick, UL, NEMA 4X |
- Bảo hành: 24 tháng.
