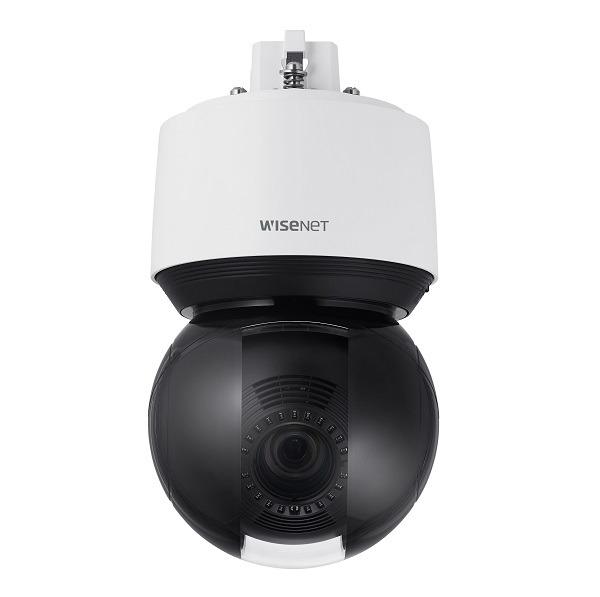

Camera IP Speed Dome 2.0 Megapixel Hanwha Techwin WISENET XNP-6400
- Cảm biến hình ảnh: 1/2.8-inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén: H.264, H.265, MJPEG.
- Ống kính: 4.25~170mm.
- Zoom quang: 40x.
- Zoom số: 32x.
- Hỗ trợ các chức năng: Day & Night (ICR), extreme WDR, Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking.
- Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux (F1.6, 1/30sec) BW: 0.005Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.25~170mm (40x) zoom (digital 32x, total 1280x zoom) |
| Max. Aperture Ratio | F1.6(Wide)~F4.95(Tele) |
| Angular Field of View | H: 65.66°(Wide)~1.88°(Tele) / V: 39.40°(Wide)~1.09°(Tele) |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Max. 700°/sec, Manual: 0.024°/sec~250°/sec |
| Tilt Range | 110°(-20°~90°) |
| Tilt Speed | Max. 500°/sec, Manual: 0.024°/sec~250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | Up to '±0.1°, Pan/Tilt correction |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR)/Color/BW/Schedule |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | Extreme WDR (150dB) |
| Digital Noise Reduction | SSNR V |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal Support |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover |
| Water Removal | Support (Spinning dry) |
| Auto Tracking | Object auto tracking (Person/Vehicle), Target lock tracking |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStream II |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast (20 users) / Multicast (128 user) Multiple streaming (Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP |
| Security | HTTPS (SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication (EAP-TLS, EAP-LEAP) Device certificate (Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 95% RH(Non-condensing) Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Certification | IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9) |
| Input Voltage | PoE+ (IEEE802.3at, Class4) |
| Power Consumption | Typical 20W, Max 25W |
| Mechanical | |
| Color / Material | Body: White / Aluminum Head: Black / Polycarbontate Hard-coated dome |
| RAL Code | White: RAL9003 / Black: RAL9005 |
| Product Dimensions / Weight | Ø158x293.3mm(6.22x11.55') / 3.2Kg |
- Bảo hành: 24 tháng.
