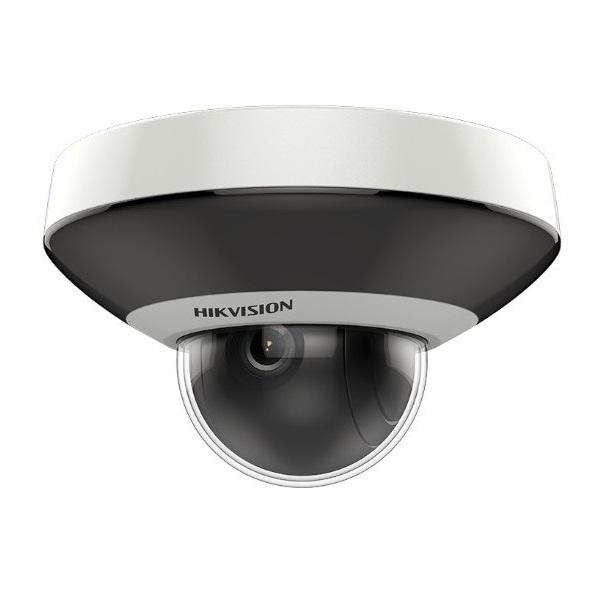

Camera IP Speed Dome 2.0 Megapixel HIKVISION DS-2DE1A200W-DE3
- Cảm biến hình ảnh: 1/3 inch progressive scan CMOS.
- Độ phân giải: 1920 × 1080@30fps.
- Độ nhạy sáng: Color: 0.005lux/F1.6, B/W: 0.001lux/F1.6.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Zoom số: 16x.
- Góc quay: 0°~330°; góc quét: 0°~90° (Tự động lật).
- Tốc độ quay: 0.1° -100°/s, góc quét: 0.1° -100°/s.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng quan sát ngày đêm ICR.
- Nguồn cấp: 12VDC & PoE.
Đặc tính kỹ thuật
| Model | DS-2DE1A200W-DE3 |
| Camera | |
| Image Sensor | 1/3 inch progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | 120dB |
| Day & Night | ICR |
| Privacy Masking | 24 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Digital Zoom | 16x |
| Lens | |
| Focal Length | 2.8 mm, 4 mm, optional |
| Minimum Working Distance | 2.8 mm: > 0.7 m; 4 mm: > 1 m |
| Aperture Range | F1.6 |
| Pan and Tilt | |
| Pan Range | 0° to 330° |
| Pan Speed | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
| Tilt Range | -15°~90° (Auto Flip) |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
| Number of Preset | 300 |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Power-off Memory | Support |
| PTZ Position Display | ON/OFF |
| Input & Output | |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio input |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Audio Compression | G.711alaw/ G.711ulaw/ G.722.1/ G.726/ MP2L2/ PCM |
| Three-Stream | Support |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| General | |
| Power supply | 24 VAC & Hi-PoE |
| Consumption | Max.: 12W |
| Material | Aluminum alloy, PC, PC+ABS |
| Weather Proof | IP66 |
| Dimensions | Φ 124.3 × 76.9 mm |
| Weight | 450 g |
- Bảo hành: 24 tháng.
