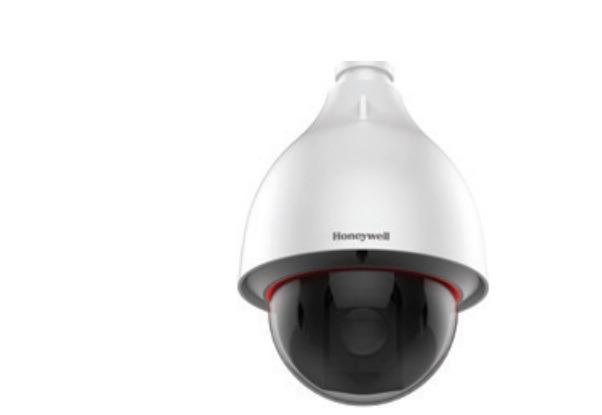

Camera IP Speed Dome 2.0 Megapixel HONEYWELL HDZ302D
- Cảm biến hình ảnh: 1/2.8-inch Sony Progressive CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 4.5 mm - 135 mm/F1.6 - F4.4.
- Tốc độ khung hình: Lên đến 60 fps.
- Độ nhạy sáng tối thiểu: 0.005 lux (colour)/0.0005 lux (B/W) @ F1.6.
- Thẻ nhớ: Support for microSD up to 128 GB (card not included).
- Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 24 VAC ± 25%.
Đặc tính kỹ thuật
| Model | HDZ302D |
| Camera | |
| Image Sensor | 1/2.8-inch Sony Progressive CMOS |
| Optical Zoom | 30x |
| Digital Zoom | 16x |
| Number of Pixels (H x V) | 1920x1080 (1080p) |
| Shutter WDR | 120 dB |
| S/N Ratio | ≥ 55 dB (AGC Off) |
| Minimum Illumination | 0.005 lux (colour)/0.0005 lux (B/W) @ F1.6 |
| Focal Length | 4.5 mm - 135 mm |
| Max Aperture | F1.6 - F4.4 |
| Focus Mode | Manual/Auto/PTZ Trigger/Zoom Trigger |
| Angle of View | H: 62.35° – 2.53°; V: 37.87° – 1.79° |
| White Balance | Auto/Indoor/Outdoor/ATW/Manual |
| Exposure Mode | Iris Priority/Shutter Priority/Gain Priority/Manual |
| Electronic Shutter | 1/1 to 1/30,000 sec |
| Backlight Compensation | BLC / HLC / WDR |
| Electronic Image Stabilization | On/Off |
| Defog | On/Off |
| Day/Night | Auto/Colour/BW |
| OPERATION | |
| Pan Travel | 360° endless |
| Tilt Travel | 0° to 90°, auto flip 180° |
| Manual Pan Speed | Up to 400°/s |
| Manual Tilt Speed | Up to 200°/s |
| Presets | 250 |
| Preset Accuracy | 0.2° |
| Preset Speed | Pan: Up to 400°/s; Tilt: Up to 200°/s |
| Tours | 8 |
| Auto Pan/Scan | 1/1 |
| Pattern | 5 |
| Privacy Masks | 24 |
| Auto Resume After Power Failure | Yes |
| Motion Detection | On/Off |
| Image Rotation | Flip |
| Audio In/Out | 1/1 |
| Alarm Input/Output | 2/1 |
| Video Analytics | Auto-tracking; Face detection; Audio detection |
| Event | Motion Detect; Video Tamper; Audio Detect; No SD card; SD card error; SD card capacity warning; Network disconnection; IP address conflict; Illegal access; Face detection |
| Event Notification | Record (SD card and FTP), Relay output, Email, Preset, Tour, Pattern, Snapshot |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Source | 24 V AC ± 25%, 1.5A and PoE+ (802.3at) class 4. 24 V AC is required to run the heater operation on HDZ302D units |
| AC Frequency | 50/60 Hz |
| Power Consumption | 13W; 23W Max (Heater On, only on 24 VAC powered units) |
| MECHANICAL | |
| Dimensions | Ø186.5 mm x 297.9 mm (Ø7.3-inch x 11.7-inch), Cable length: 470 mm (18.5-inch) |
| Product Weight | 2.7 kg (6.0 lb) |
| Connectors | Power input: Bare wire with connectors Network: RJ45 connector Alarm I/O: Twisted wire (1 in/1 out) Audio I/O: Twisted wire (1 in/1 out) |
| Construction Material | Aluminum |
| Construction Colour | White (RAL CODE 9003) |
| ENVIRONMENTAL | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F). -40°C (-40°F) cold start only for 24 VAC powered units. 24 VAC is required to run the heater operation |
| Storage Temperature | -40°C to 60°C (–40°F to 140°F) |
| Relative Humidity | Less than 95%, non-condensing |
| Waterproof Standard | IP66 |
| Impact Rating | IK10 (HDZ302DIN: IK10 only for bubble) |
| IP SPECIFICATIONS | |
| Video Compression | H.265/ H.264/ MJPEG |
| Video Streaming | Primary Stream:1080p @ 60/50 fps; 1.3M/720p @ 30/25 fps Second Stream: 1080p/1.3M/720p @ 30/25 fps Third Stream: D1/CIF @ 30/25 fps |
| Video Resolution | Up to 1920x1080p |
| Audio Compression | G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 |
| Audio Stream | Full-duplex, Simplex |
| Interface | RJ-45, 10/100 Mbps Ethernet |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, ONVIF; HDZ302DE only: RS485, Pelco P, Pelco D |
| Security | User account and password protection, HTTPS, IP Filter, IEEE 802.1x, digest authentication, user access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCI-DSS, built-in crypto chipset, UL2900-1, UL Cyber Assurance Program (UL CAP) certification |
| Maximum Users Access | 20 users |
| MicroSD | Support for microSD up to 128 GB (card not included) |
| MicroSD Function | Event trigger recording, Continuous and scheduled recording, Automatic recording when network fails |
| Supported Web Browsers | Internet Explorer (11.0+), Firefox, Chrome |
| Supported OS | Windows 7 32-bit/64-bit |
| Communication | ONVIF Profile S and G |
| REGULATORY | |
| Emissions | EN55032, FCC Part 15B; AS/NZS CISPR 22:2009+ A1 (2010) |
| Immunity | EN50130-4 |
| Safety | EU: EN60950-1, EN60950-22 North America UL listed to UL/CSA 60950-1, 60950-22 |
| RoHS | EN50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
