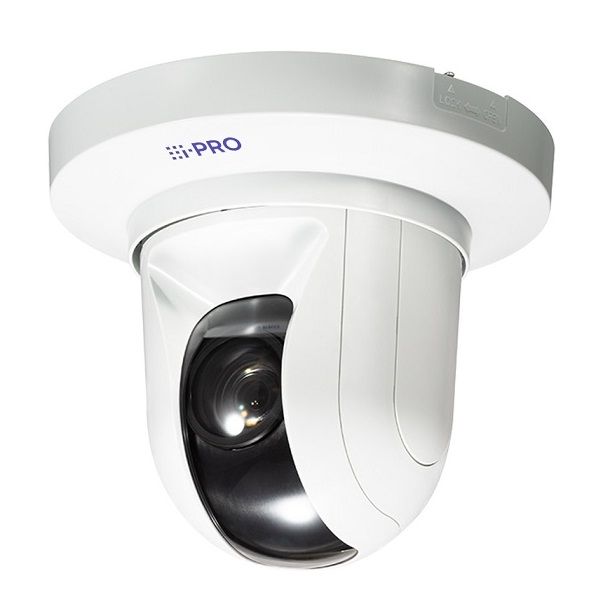

Camera IP Speed Dome 2.0 Megapixel I-PRO WV-U61301-Z2
- Cảm biến hình ảnh: Approx. 1/2.8 type CMOS image sensor.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng tối thiểu:
+ Color: 0.015lx (50IRE, F1.6, 1/30s);
+ Color: 0.001lx (50IRE, F1.6, 16/30s);
+ BW: 0.006 lx (50IRE, F1.6, 1/30s);
+ BW: 0.0004 lx (50IRE, F1.6, 16/30s).
- Chuẩn nén hình ảnh: H.265/H.264/JPEG.
- Hỗ trợ các tính năng camera: BLC, HLC, Super Dynamic 144dB.
- Zoom quang: 21x.
- Hỗ trợ tính năng iA (intelligent Auto).
- Nhiệt độ hoạt động: -10°C - +50°C.
Thông số kỹ thuật
| Camera | |
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color: 0.015 lx (50IRE, F1.6, 1/30s) , Color: 0.001 lx (50IRE, F1.6, 16/30s) BW: 0.006 lx (50IRE, F1.6, 1/30s) , BW: 0.0004 lx (50IRE, F1.6, 16/30s) |
| White Balance | ATW1/ATW2/AWC |
| Shutter Speed | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Intelligent Auto | On/Off |
| Super Dynamic | On/Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.144 dB (Super Dynamic: On, Level 31) |
| Back light compensation / High light compensation | BLC (Back light compensation)/HLC (High light compensation)/Off The level can be set in the range of 0 to 31 (only when Super dynamic/ Intelligent Auto: Off) |
| Fog compensation | On/Off, The level can be set in the range of 0 to 8 (only when Intelligent auto/auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/On/Auto1/Auto2/Auto3 (SCC) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/Off, 4 areas available |
| Scene Change Detection (SCD) | On/Off, 1 areas available |
| Audio Detection | On/Off |
| Privacy Zone | On/Off, Up to 32 zones available |
| VIQS | On/Off, Up to 8 zones available |
| Image Stabilizer | On/Off (Built-in gyro sensor) |
| Camera Title (OSD) | On/Off, Up to 40 characters (alphanumeric characters, marks) |
| Focus Adjustment | Auto focus |
| Lens | |
| Optical zoom | 21x (Motorized zoom/Motorized Focus) |
| Extra zoom | Max. 31x (21 to 31x : When resolution is 1280 x 720) |
| Focal Length | 4.0 - 84.6 mm {5/32 inches - 3-21/64 inches} |
| Angular Field of View | [16 : 9 mode] Horizontal : 3.7° (TELE) - 77° (WIDE), Vertical : 2.2° (TELE) - 44° (WIDE) [4 : 3 mode] Horizontal : 2.8° (TELE) - 58° (WIDE), Vertical : 2.2° (TELE) - 44° (WIDE) |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.5 (TELE) |
| Focus Range | 1.5 m {50-1/16 inches} – ∞ |
| DORI | |
| Detect (25ppm/8ppf) | Wide: 51.9m/170.3 ft, Tele: 1293.8 m/4244.9 ft |
| Observe (62.5ppm/19ppf) | Wide: 20.8 m/68.1 ft, Tele: 517.5 m/1697.9 ft |
| Recognize (125ppm/38ppf) | Wide: 10.4 m/34.1 ft, Tele: 258.8 m/849.0 ft |
| Identify (250ppm/76ppf) | Wide: 5.2m/17.0 ft, Tele: 129.4 m/424.5 ft |
| System on Chip (SoC) | |
| System on Chip (SoC) | Ambarella CV25M |
| Adjusting Angle | |
| Adjusting Angle | Horizontal: 0 to +350°, Vertical: -30 to +90°, Yaw: 0° |
| Pan/tilt | |
| Panning Range | 0° – 350° |
| Panning Speed | Manual: Approx. 0.065°/s – 150°/s , Preset: Up to approx. 500°/s |
| Tilting Range | Operational -30° – +90° |
| Tilting Speed | Manual: Approx. 0.065°/s –150°/s , Preset: Up to approx. 350°/s |
| Preset Positions | 256 positions |
| Auto Mode | Auto pan/ Preset sequence/ Patrol |
| Self Return | 10 s/20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Browser GUI | |
| Camera Control | Brightness, AUX On / Off |
| Audio | Mic (Line) Input: On/Off Volume adjustment: Low/Middle/High Audio Output: On/Off Volume adjustment: Low/Middle/High |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser | Microsoft Edge, Firefox, Google Chrome |
| Network | |
| Network IF | 10 Base-T/100 Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | [16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)], [16 : 9 mode (50 fps mode)], [16 : 9 mode (25 fps mode)] : 1920x1080, 1280x720, 640x360, 320x180 [4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] : 1280x960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] : 2048x1536 , 1280x960, VGA, QVGA |
| H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP (Group of pictures) control: Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart Coding: Auto VIQS: On/Off |
| Audio Compression | G.726 (ADPCM): 16 kbps/32kbps, G.711: 64 kbps, AAC-LC: 64kbps/ 96kbps/ 128kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP, NTCIP |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Secure | FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption |
| Mobile Terminal Compatibility | iPad, iPhone (iOS 8.0 or later), Android™ terminals |
| ONVIF® Profile | G/S/T |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
| Input/Output | |
| Audio Input | ø3.5 mm stereo mini jack For microphone input: Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance: Approx. 2 kΩ (unbalanced)/Supply voltage: 2.5 V ±0.5 V For line input: Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced), Output level: –20 dBV |
| External I/O Terminals | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 |
| Power Source and Power Consumption | DC12 V, PoE (IEEE802.3af) , DC12 V: 970 mA / Approx. 11.6 W PoE DC 48 V: 270 mA / Approx.12.95 W (Class 0device) |
| Ambient Operating Temperature | -10°C to +50°C (+14°F to +122°F) (Power On range: 0°C to +50°C {+32 °F to +122 °F}) |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Dimensions | ø117 mm x 155 mm (H) |
| Mass (Approx.) | Approx. 1.2 kg |
| Finish | Main body: Resin, i-PRO white |
- Bảo hành: 12 tháng.
