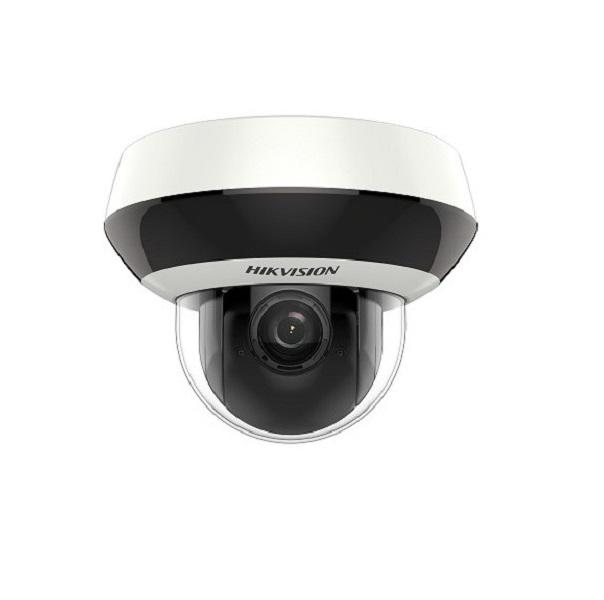

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2DE2A204IW-DE3
- Cảm biến hình ảnh: 1/3 inch progressive scan CMOS.
- Độ phân giải camera ip : 2 Megapixel (1920 x 1080@25fps).
- Chuẩn nén hình ảnh: H.265+/H.265.
- Tầm quan sát hồng ngoại: 20 mét.
- Độ nhạy sáng: Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON), 0Lux with IR.
- Zoom quang: 4x.
- Zoom số: 16x.
- Hỗ trợ 1 ngõ vào audio, 1 ngõ ra audio.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC với dung lượng lên tới 256 GB.
- Chức năng chống ngược sáng thực 120 dB WDR.
- Chức năng giảm nhiễu kỹ thuật số 3D DNR.
- Chức năng ổn định hình ảnh điện tử, chống rung EIS.
- Chức năng HLC, Regional Exposure, Regional Focus.
- Hỗ trợ các tính năng thông minh: Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection.
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
- Tiêu chuẩn chống đập phá: IK10.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ cấp nguồn qua mạng PoE (Power over Ethenet).
- Nguồn điện: 12 VDC.
- Kích thước: Φ130.7 mm × 101.7 mm.
- Khối lượng: 0.53 kg.
Đặc tính kỹ thuật
| Model | DS-2DE2A204IW-DE3 |
| Camera | |
| Image Sensor | 1/3 inch progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON); 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s |
| 60Hz: 1/1 s to 1/30,000 s | |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16x |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Lens | |
| Focal Length | 2.8 mm to 12 mm, 4x optical zoom |
| Zoom Speed | Approx. 2 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 109° to 34° (Wide-Tele) |
| Vertical field of view: 57° to 19° (Wide-Tele) | |
| Diagonal field of view: 135° to 39° (Wide-Tele) | |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F2.7 |
| PTZ | |
| Movement Range (Pan) | 0° to 330° |
| Pan Speed | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
| Movement Range (Tilt) | From 0° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s |
| Support | Proportional Zoom, Power-off Memory |
| Presets | 300 |
| Compression Standard | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Support | H.264+/ H.265+ |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
| SVC | Support |
| Smart Features | |
| Basic Event | Motion Detection, Video Tampering Detection, Exception |
| Smart Event | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| ROI | Main stream, sub-stream, and third stream respectively support two fixed areas. |
| IR | |
| IR Distance | 20 m |
| Smart IR | Support |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) |
| 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |
| Third Stream | 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Image Enhancement | 3D DNR, HLC, EIS, Regional Exposure, Regional Focus |
| Network | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users; 3 levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Interface | |
| Audio Interface | 1-ch audio input and 1-ch audio output |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| General | |
| Power | 12 VDC & PoE; Max: 12 W (Max. 3.9 W for IR) |
| Working Temperature | -20°C to 60°C (-4°F to 140°F) |
| Working Humidity | ≤ 90% |
| Protection Level | IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Aluminum alloy, PC, PC+ABS |
| Dimensions | Φ 130.7 mm × 101.7 mm |
| Weight | Approx. 0.53 kg |
- Bảo hành: 24 tháng.
