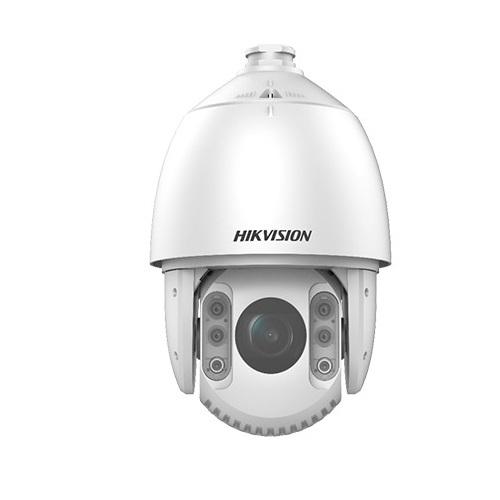

Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2DE7425IW-AE(S5)
- Chuẩn nén hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 2560× 1440@30fps.
- Chuẩn nén hình ảnh: H.265+/H.265.
- Độ nhạy sáng: Color: 0.005Lux @ (F1.2，AGC ON), B/W: 0.001Lux @(F1.2，AGC ON), 0 Lux with IR.
- Chức năng: WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
- Tầm camera quan sát hồng ngoại: 200 mét.
- Alarm: 2 in / 1 out.
- Audio: 1 in / 1 out.
- 25× optical zoom, 16× digital zoom.
- 7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome.
- Theo dõi đối tượng thông minh dựa trên thuật toán AI nhận dạng người & phương tiện.
- Hỗ trợ chụp ảnh khuôn mặt. Lên đến 5 khuôn mặt cùng 1 thời điểm.
Đặc tính kỹ thuật
| Model | DS-2DE7425IW-AE(S5) |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Min. Illumination | 0 Lux with IR, color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON) |
| Shutter Speed | 1/1s-1/30000s |
| Slow Shutter | Yes |
| Focus | Semi-auto; manual; auto |
| Day & Night | ICR |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| BLC, HLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus, | Yes |
| WDR | 120 dB WDR |
| Image Settings | Saturation, Brightness; contrast; sharpness |
| White Balance | MWB; indoor; outdoor; fluorescent lamp; sodium, lamp; ATW; auto; Locked WB; Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 25x |
| Privacy Mask | Up to 24 masks;mosaic mask; mask color configurable; polygon region |
| SNR | ＞52dB |
| Lens | |
| Focal Length | 4.8 mm to 120 mm, 25× Optical |
| Zoom Speed | Approx. 3.6 s |
| FOV | Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele) |
| Aperture | F1.6 |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90°(auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-Off Memory | Yes |
| Park Action | Preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan |
| 3D Positioning, PTZ Status Display, Preset Freezing | Yes |
| Scheduled Task | Preset; auto scan; random scan; frame scan; patrol scan; pattern |
| Video | |
| Max. Resolution | 2560 × 1440 |
| Stream Type | Main stream; sub-stream; third stream |
| Video Compression | H.265; H.264; MJPEG |
| Video Bit Rate | 32kbps to 16384kbps |
| H.264 Type | Baseline profile; main profile; high profile |
| H.265 Type | Main profile |
| H.264+ | Yes |
| H.265+ | Yes |
| SVC | |
| ROI | Dynamic face tracking; main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Compression | G.711alaw; G.711ulaw; G.722.1; G.726; MP2L2; PCM |
| Audio Bit Rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 k |
| Audio Sampling Rate | MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
| Smart Features | |
| Face Capture | Yes |
| Basic Event | Audio exception; motion detection; video tampering alarm; exception |
| Smart Event | Intrusion detection; line crossing detection; region entrance detection; region exiting detection; unattended baggage detection; object removal detection |
| Smart Record | ANR; Dual-VCA |
| Alarm Linkage | Preset; patrol scan; pattern scan; memory card video recording; alarm output; sending email, notify surveillance center; upload to FTP |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS); ANR |
| Protocols | IPv4/IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTCP;RTP; TCP/IP; UDP; IGMP; ICMP; DHCP; PPPoE; Bonjour |
| API | ISAPI; Hikvision SDK; ONVIF (Profile S, Profile G, Profile T); ISUP;Hik-Connect |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Smooth Streaming | Yes |
| Security Measures | Authenticated username and password; MAC address binding; HTTPS encryption;802.1X a |
| Client | iVMS-4200; Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-Board Storage | Support microSD/microSDHC/microSDXC cards; up to 256 GB |
| Alarm Input | 2 alarm input |
| Alarm Output | 1 alarm output |
| Audio Input | 1 audio input |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| Supplement Light | |
| IR Distance | 200m |
| General | |
| Power | 24VDC, Hi-PoE (802.3at) |
| Power Consumption And Current | Max. 42 W, including max. 10 W heater and max. 18 W for supplement light |
| Demist | Demist by heating the glass |
| Reset | Yes |
| Material | ADC 12, PC, PC+10% GF |
| Dimensions | Φ 220 mm × 353.4 mm |
| Weight | Approx. 5 kg (7.28 lb) |
| Protection | IP66; IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and |
- Bảo hành: 24 tháng.
