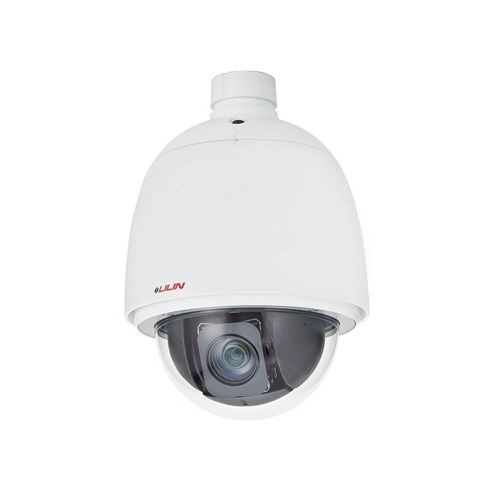

Camera IP Speed Dome 5.0 Megapixel LILIN S8D4654EX25
- Cảm biến hình ảnh: 1/2.8″ CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén: H.265/HEVC và H.264/AVC.
- Ống kính: 5.3 ~ 132.5mm.
- Zoom quang: 25X.
- Zoom số: 8X.
- Giảm nhiễu 3D noise reduction (MCTF).
- Chống ngược sáng HDR 120dB.
- Chức năng quan sát Day & Night (IR cut removable).
- Chức năng chống sương mù Defog.
- Quay ngang 360°, quay dọc 192°.
- Hỗ trợ âm thanh 2 chiều (không tích hợp sẵn Microphone).
- Hỗ trợ chuẩn ONVIF Profile S, T, G.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: AC24V ±10% / DC24V / PoE++.
Thông số kỹ thuật
| Model | S8D4654EX25 |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Zoom ratio | 25X Optical |
| Focal Length | 5.3 (WIDE) – 132.5 (TELE) mm |
| Minimum Aperture Ratio | F1.6(Wide) – F4.3(Tele) |
| Iris Range | F1.6 – 32, Close |
| Iris Control | DC IRIS, ALC ( Adjustable Output Target Level ) / Manual |
| Minimum object distance | 50 cm (WIDE end), 1.5M (TELE end) |
| Focus | Auto (Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Effective pixels | 2616 (H) × 1964 (V) = 5,137,824 (Pixels) |
| Control Function | Pan and Tilt / Zoom and Focus / Iris and ICR / 256 Preset Position / Home Position |
| Auto Mode | OFF / SCAN(16) / SEQ(256) / TOUR(16) / PATROL(16) / Auto TRACKING |
| Schedule Setting | OFF / SCAN (4)/ SEQ(256) / TOUR(4) / PATROL(4) / Preset Position(256)(via web interface) |
| Panning Range | 360° Endless |
| Panning Mode | Manual, Auto, Manual Position, Sequential Position |
| Panning Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 360°/s, Alarm Trigger Speed 360°/s |
| Tilting Range | -6° ~ +186° |
| Tilting Mode | Manual, Auto, Manual Position, Sequential Position |
| Tilting Speed | Manual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 360°/s, Alarm Trigger Speed 360°/s |
| Audio Input / Output | one audio input / one audio output Terminal block type (microphone not built- in) |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, BNC connector |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| Alarm Input / output | Digital 4 Input (TTL 5Vdc), 2 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW / 300mA, 450mW), Terminal block type |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Resolution | 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: 60Hz: 30 FPS @ 2592 × 1944 50Hz: 25 FPS @ 2592 × 1944 HDR mode: 60Hz: 30 FPS @ 2592 × 1944 50Hz: 25 FPS @ 2592 × 1944 |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Exposure Mode | AUTO / SHUT.P / IRIS.P |
| Sense Up | Off / x2 / x4 / x8 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / ON( 1 – 32) |
| High Dynamic Range (HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | OFF / ON ( Up to 16 area) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Defog, Digital Zoom(x8) |
| SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| IVS Basic 1.0 | Motion / Tamper |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Control interface | RS-485, Half-Duplex, support MLP2, Pelco D/P protocols |
| Network Interface/Ethernet | 10/100 Mbps Base-T, RJ-45 |
| ePTZ & Digital Zoom | - / Yes (X8) |
| PTZ Control | Pan, tilt, zoom in/out, absolute position, and video-click-n-move |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Operating temperature | -40°C ~ + 50°C |
| Storage temperature | -20°C ~ + 60°C |
| Power Supply | AC24V ±10% / DC24V / PoE++ (IEEE 802.3bt) |
| Dimensions | 275 (H) × 192 (D) mm |
| Weight | 3100 g |
| Casing Material | Aluminum alloy |
| IP Rating | IP66 |
| Vandal Resistant Rating | IK10 (Housing) |
- Bảo hành: 36 tháng.
