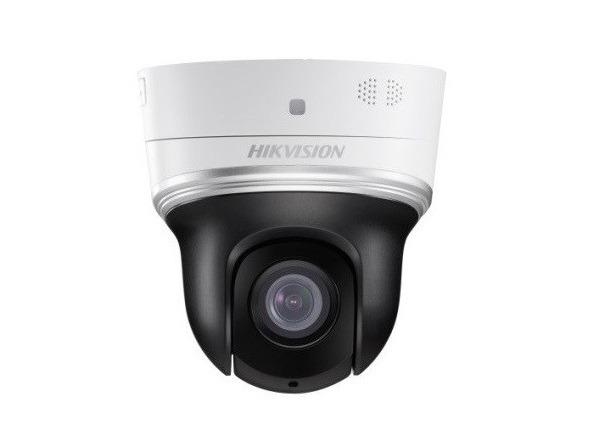

Camera IP Speed Dome hồng ngoại Wifi 2.0 Megapixel HIKVISION DS-2DE2204IW-DE3/W
- Cảm biến hình ảnh: 1/2.8 inch progressive scan CMOS.
- Độ phân giải camera ip: 1920x1080:30fps.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Zoom quang: 4x.
- Zoom số: 16x.
- Tầm quan sát hồng ngoại: 20 mét.
- Góc nhìn Angle of View: 80 ~ 64.5° (Wide~Tele).
- Góc quay Pan range: 0°~350°.
- Góc quét Tilt range: 0°~90° (Auto Flip).
- Tốc độ Pan Speed: 0.1° -100°/s.
- Tốc độ quét Tilt Speed: 0.1° -80°/s.
- Hỗ trợ kết nối Wifi.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng quan sát ngày đêm ICR.
- Nguồn cấp: POE&12VDC.
Đặc tính kỹ thuật
| Model | DS-2DE2204IW-DE3/W |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Min. Illumination | Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.005 Lux @(F2.0, AGC ON) 0 Lux with IR |
| White Balance | Auto/ Manual/ ATW/ Indoor/ Outdoor/ Daylight lamp/ Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Day & Night | ICR |
| Privacy Masking | 8 programmable privacy masks |
| Auto Focus | Auto / Semi-automatic / Manual |
| Digital Zoom | 16x |
| IR Distance | 20m |
| Lens | |
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Field of View | 100° to 25° (wide-tele) |
| Minimum Working Distance | 10 mm to 1500 mm (Wide-Tele) |
| Aperture Range | F1.8 to F2.5 |
| Pan and Tilt | |
| Pan Range | Pan: 0~350° |
| Pan Speed | Configurable, from 0.1°/s to 60°/s, Preset Speed: 60°/s |
| Tilt Range | 0°~90° |
| Tilt Speed | Configurable, from 0.1°/s to 50°/s, Preset Speed: 50°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan |
| PTZ Position Display | ON/OFF |
| Alarm | |
| Alarm Input | 1 |
| Alarm Linkage | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
| Input & Output | |
| Audio Input | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output | 1 channel audio output, linear level |
| Network | |
| Ethernet | 10Base -T, 100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Audio Compression | G.711alaw/ G.711ulaw/ G.722.1/ G.726/ MP2L2/ PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| General | |
| Power supply | 12V DC & PoE((802.3af, class3) |
| Consumption | Max.: 9W |
| Material | ADC12 PC PC+ABS SUS304 POM |
| Dimensions | Φ 125 mm × 136.7 mm |
| Weight | 0.65kg |
- Bảo hành: 24 tháng.
