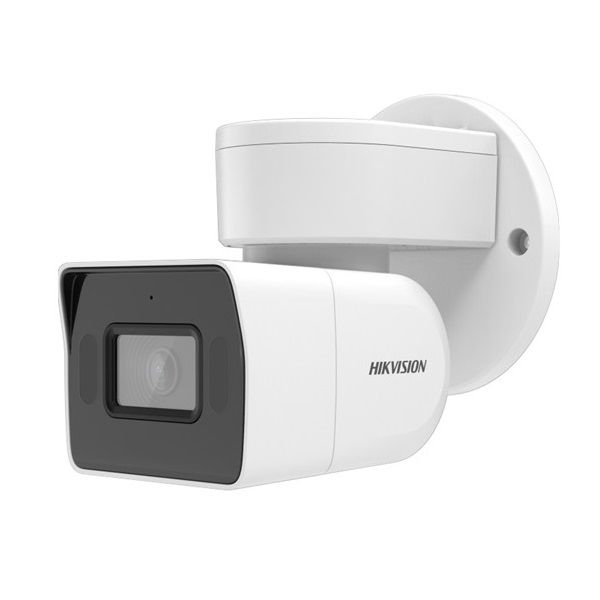

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD1P23G0-I
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.264/H.265/H.265+.
- Ống kính cố định: 4 mm.
- Tầm quan sát hồng ngoại: 40 mét.
- Xoay ngang: 0°~200°.
- Xoay dọc: -10°~55°.
- Chống ngược sáng thực 120dB WDR.
- Chống ngược sáng BLC.
- Chống sáng chói HLC.
- Chống nhiễu 3D-DNR.
- Hỗ trợ 1 microphone.
Đặc tính kỹ thuật
| Model | DS-2CD1P23G0-I |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Horizontal: 0°~200°, vertical: -10°~55° |
| Power-off Memory | Yes |
| Presets | Yes |
| Lens | |
| Lens Type & FOV | 4 mm: Horizontal FOV: 87.3°, vertical FOV: 46.3°, diagonal FOV: 104.2° |
| 6 mm: Horizontal FOV: 53.9°, vertical FOV: 28.8°, diagonal FOV: 62.8° | |
| 8 mm: Horizontal FOV: 40.9°, vertical FOV: 22.5°, diagonal FOV: 47.4° | |
| 12 mm: Horizontal FOV: 25.4°, vertical FOV: 14.4°, diagonal FOV: 29.1° | |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 40 m |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50 Hz: 1 fps (1280 × 720, 640 × 360) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Yes |
| H.265+ | Yes |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)/ 16~64Kbps (AAC) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, IGMP, QoS, UDP, Bonjour, SSL/TLS, 802.1x, UPnP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Smart IR | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface | |
| Audio | 1 built-in microphone |
| Hardware Reset | Yes |
| Communication Interface | 1 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| General | |
| Linkage Method | Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture |
| General Function | Heartbeat, mirror, password protection, watermark, IP address filtering, flash log, pixel counter |
| Software Reset | Yes |
| Storage Conditions | -30 °C to 60 °C. Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C. Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% ; reverse polarity protection PoE: 802.3at, Class 4 |
| Power Consumption and Current | 12 VDC, 0.8 A, max. 9.6 W PoE: 802.3at, 42.5 V~57 V, 0.28 A~0.21 A, max. 12 W |
| Power Interface | Φ5.5 mm coaxial power plug |
| Camera Dimension | 84.4 × 65.3 × 125.4 mm |
| Camera Weight | Approx. 698 g |
- Bảo hành: 24 tháng.
