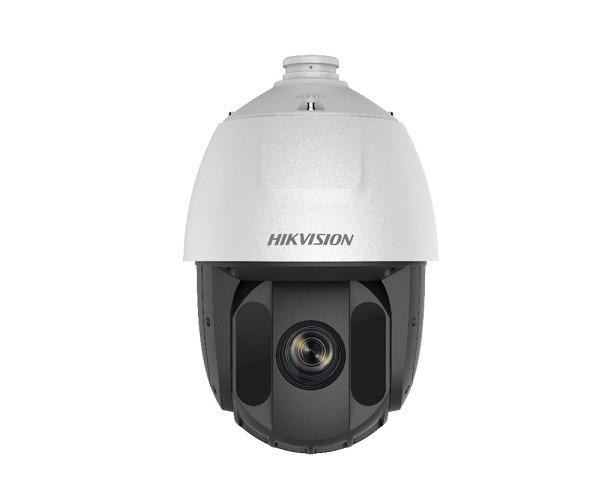

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2DE5425IW-AE(S5)
- Camera IP Speed Dome 5-inch 2MP 25X Powered by DarkFighter.
- Hỗ trợ các chức năng báo động thông minh dựa trên thuật toán AI nhận dạng người và phương tiện.
- Hỗ trợ chụp ảnh khuôn mặt. Lên đến 5 khuôn mặt cùng 1 thời điểm.
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 2560× 1440@30fps.
- Chuẩn nén hình ảnh: H.265+/H.265.
- Độ nhạy sáng tối thiểu: Color: 0.005Lux @ (F1.6, AGC ON), B/W: 0.001Lux @(F1.6, AGC ON), 0 Lux with IR.
- Tầm quan sát hồng ngoại: 150 mét.
- Zoom quang: 25x.
- Zoom số: 16x.
- Hỗ trợ các tính năng: WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus.
- Hỗ trợ cổng Alarm: 2 in/ 1 out.
- Hỗ trợ cổng Audio: 1 in/ 1 out.
- Nguồn điện: 24VAC & Hi-PoE.
Đặc tính kỹ thuật
| Model | DS-2DE5425IW-AE(S5) |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30000s |
| Slow Shutter | Yes |
| Focus | Semi-auto, manual, auto |
| Day & Night | ICR |
| Day/Night Switch | day, night, auto, scheduled-switch |
| BLC | Yes |
| WDR | 120 dB WDR |
| HLC | Yes |
| 3D-DNR | Yes |
| Defog | Yes |
| EIS | Yes |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Image Settings | saturation, brightness, contrast, sharpness |
| White Balance | Auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 25x |
| Privacy Mask | up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | >52dB |
| Lens | |
| Focal Length | 4.8 mm to 120 mm, 25x Optical |
| Zoom Speed | approx. 3.6 s |
| FOV | 57.6° to 2.5° (Wide-Tele) |
| Aperture | F1.6 |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | configurable from 0.1° to 120°/s; preset speed: 120°/s |
| Tilt Speed | configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-off Memory | Yes |
| Park Action | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Max. Resolution | 2560 × 1440 |
| Stream Type | main stream, sub-stream, third stream |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264+ | Yes |
| H.265+ | Yes |
| SVC | Yes |
| ROI | dynamic face tracking, fixed region, main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Environment Noise Filtering | Yes |
| Smart Features | |
| Face Capture | Yes |
| Basic Event | audio exception, motion detection, video tampering alarm, exception |
| Smart Event | intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Smart Tracking | manual tracking, event tracking, auto-tracking |
| Smart Record | ANR, Dual-VCA |
| Alarm Linkage | preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, smart tracking |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Smooth Streaming | Yes |
| Security Measures | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | support microSD/microSDHC/microSDXC cards, up to 256 GB |
| Alarm Input | 2 |
| Alarm Output | 1 |
| Audio Input | 1 |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| Supplement Light | |
| IR Distance | 150m |
| General | |
| Power | 24 VAC, Hi-PoE |
| Power Consumption and Current | Max. 30 W, including max. 10 W for IR |
| Operating Conditions | -30°C to 65°C (-22°F to 149°F); humidity lower than 90%RH |
| Reset | Yes |
| Material | ADC 12, PC, PC+10% GF |
| Protection | IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient |
| Dimensions | Φ 208 mm × 345 mm |
| Weight | Approx. 3.3 kg |
- Bảo hành: 24 tháng.
