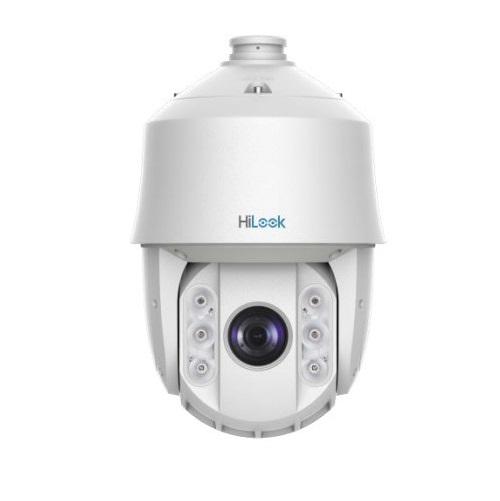

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HILOOK PTZ-T5225I-A
- HILOOK PTZ-T5225I-A là dòng camera IP Speed Dome hồng ngoại 2.0 Megapixel.
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Zoom quang 25×.
- Zoom số: 16×.
- Tầm quan sát hồng ngoại: Lên đến 150 mét.
- Hỗ trợ tính năng chống ngược sáng thực WDR 120dB.
- Tính năng 3D intelligent positioning.
- Chức năng giảm nhiễu số 3D-DNR.
- Tiêu chuẩn chống bụi và nước: IP66 (Thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 24 VAC.
- Kích thước: Ø 213.4 mm × 345 mm.
- Trọng lượng: 3.3kg.
Đặc tính kỹ thuật
| Model | PTZ-T5225I-A |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| Digital Zoom | 16× |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | DWDR |
| Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Privacy Mask | 8 programmable privacy masks |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 mm to 120 mm, 25 × Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Horizontal Field of View | 57.6°to 2.5° (wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 3.2 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1°to 120°/s Pan preset speed: 120°/s |
| Tilt Range | -15° to 90°(auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Support |
| Scheduled Task | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ Zero Calibration/ None |
| Infrared | |
| IR Distance | Up to 150 m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| Input/Output | |
| Video Output | 1 turbo 1080p output/ 1 CVBS output, (NTSC or PAL composite, BNC) |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 24 VAC Max.30 W (IR: 10 W) |
| Working Temperature | -30° C to 65° C (-22° F to 149° F) |
| Working Humidity | 90% or less |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimension | Ø 213.4 mm × 345 mm |
| Weight (approx.) | 3.3 Kg (7.28 Ib.) |
- Bảo hành: 24 tháng.
