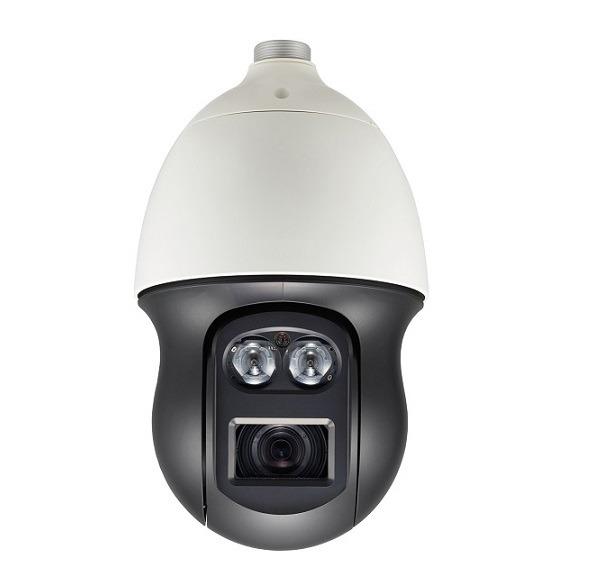

Camera IP Speed Dome hồng ngoại 8.0 Megapixel Hanwha Techwin WISENET PNP-9200RH/VAP
- Cảm biến hình ảnh: 1/2.5 inch CMOS.
- Độ phân giải camera ip: 8 Megapixel (3840 x 2160).
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Zoom quang: 20x.
- Zoom số: 16x.
- Tầm quan sát hồng ngoại: 200 mét.
- Xoay ngang: 400°/s.
- Xoay dọc: 300°/s.
- Chức năng quan sát ngày đêm ICR.
- Chức năng chống ngược sáng WDR (120dB).
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.5 inch 8MP CMOS |
| Resolution | 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.01Lux(F1.6, 1/30sec) BW: 0Lux(IR LED) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.8~96mm(20x) zoom |
| Max. Aperture Ratio | F1.8(Wide)~F3.6(Tele) |
| Angular Field of View | H: 65.1°(Wide)~3.8°(Tele) / V: 38.4°(Wide)~2.2°(Tele) |
| Min. Object Distance | 1.5m(3.28ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 400˚/sec, Manual: 0.024˚/sec ~ 250˚/sec |
| Tilt Range | 190˚(-5˚~185˚) |
| Tilt Speed | Preset: 300˚/sec, Manual: 0.024˚/sec ~ 250˚/sec |
| Sequence | Preset (300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Defog | Support |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 16ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
| Serial Interface | RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable (mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 200m |
| Auto Tracking | Support |
| Network | |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStream |
| Streaming | Unicast(15 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI (HTTP API) Wisenet open platform |
| General | |
| Edge Storage | SD/SDHC/SDXC 1slot 128GB |
| Memory | 1024MB RAM, 256MB Flash |
| Operating Temperature/ Humidity | -50°C~+55°C (-122°F~+131°F)/ Less than 90% RH |
| Storage Temperature/ Humidity | -50°C~+60°C (-122°F~+140°F)/ Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max 90W |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Sản xuất tại Việt Nam.
- Bảo hành: 24 tháng.
