Model | Camera LiLin Z2R6422AX |
Image Sensor/Sensor type | 1/2.8" CMOS image sensor |
Effective pixels | 1945 (H) × 1097 (V) = 2,133,665 (pixels) |
Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
Frame Rates | Normal mode 60Hz: 60 fps @ 1920 × 1080 50Hz: 50 fps @ 1920 × 1080 HDR mode 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 |
Lens | 2.8 – 8 mm (zoom / focus motorized) |
Iris | F1.6 |
Angle of View | 108.1° (W) – 56.7° (T) (H) 57.6° (W) – 31.6° (T) (V) 130.4° (W) – 64.8° (T) (D) |
Auto Focus | One Push |
Max IR distance | 30M |
Infrared LED Angle | 60° , 90° |
Min. illumination/Low Light Mode (Colour) | Color : 0.007 Lux at F1.6 ; B/W : 0.002 Lux at F1.6 ; 0 Lux with IR LED ON |
Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, Smart H.264/H.265 |
Scanning System | Progressive Scan |
IR cut filter | Auto / Day (Color) / Night (Mono) / Schedule |
Peak wavelength | 850nm |
White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
3D Noise Reduction | Off / 1 – 32 Selectable |
2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif |
High Dynamic Range(HDR) | Up to 100dB (by HDR mode, 2 shutter line interleave) |
Privacy Masking | Off / On (4 zones) |
Sense Up+ | Off / 1 Frame / 2 Frames |
Auto Gain Control | 66 dB Variable Gain |
Shutter Time | 1/30(1/25)s – 1/30000s |
Audio | Two-way Audio, G.711 u-law / PCM / AAC, SIP |
Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
Video Management | ONVIF Profile S / IVS events, LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API |
Video Display | LILIN Universal ActiveX , LILIN Java Applet |
OSD (On-Screen Display) | Position configurable text overlay for date, time, camera ID, event status and watermark with customizable user demand data |
Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , SDDP, Bonjour , 802.1x |
Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
Access | Multiple user access levels with password protection |
User accounts | 10 user accounts available |
Encryption | Base64 HTTP encryption, HTTPS encryption |
OS | Embedded Linux 3.10 |
CE | CE : Yes, EMI Class B |
FCC | FCC : Yes, EMI Class B |
PoE | Yes |
Power Consumption | DC12V, 7.5W / PoE, 9W |
Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
Network Interface/Ethernet | 10/100 Mbps Base-T, RJ-45 |
IP Rating | IP67 |
Vandal Resistant Rating / IK Rating | IK10 |
ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
CPU requirement | Intel® Core™ i7 or higher grade |
OS requirement | Windows 7 or above |
RAM requirement | 8GB or above, Dedicated Graphics Card |
Web browser | Microsoft® Internet Explorer® 9 or above |
Users | 10 simultaneous users |
Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / SMTP Trap |
Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / SmartEvent |
SD Card (recording) | Support (128GB) Micro SD/SDHC/SDXC card for circular recording (card is not included) |
CPU | Embedded Linux 3.10 |
IVS (Intelligent Video Surveillance) | Motion Detection, Tampering Detection, Advanced Motion Detection, Tripwire, Traffic Light Detection, Object Counting |
Multi IP address | Yes |
IP address filter | IP address filter, MAC address filter |
Mobile phone | Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support |
Languages | English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese |
Starting Temperature | -10°C – +50°C (14°F – 122°F) |
Operating temperature | -40°C – +50°C (-40°F – 122°F) |
Storage temperature | -25°C – +60°C (-13°F – 140°F) |
Operating humidity | 0% – 90% RH |
Dimensions | Ø120 × 106 mm |
Weight | 760g |
S / N Ratio | More than 50dB (AGC off) |
Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation |
Authentication | Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS |
Material/ Construction | Aluminum alloy |
Maintenance | Firmware update via HTTP and IP Scan; Firmware available at web site |

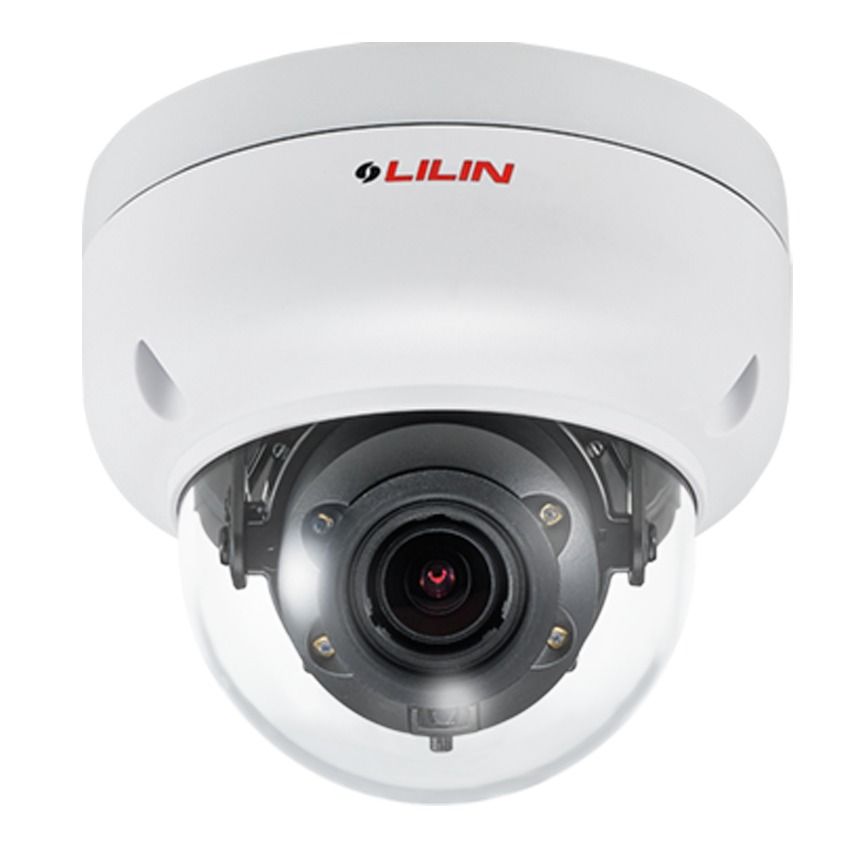

Camera LiLin H.265 Series Z2R6422AX
- MS 0016019
- LILIN
Độ phân giải hình ảnh1 / 2.8 "CMOS
Chuẩn nén video H.265 / HEVC và H.264 Motion JPEG
Tiêu cự lens: 2.8 – 8 mm (tự động lấy nét với ống kính zoom / lấy nét)
Chuẩn IP67 chống mưa và bụi
Chuẩn IK10 chống va đập
Đèn LED hồng ngoại hiệu quả cao, khoảng cách IR lên tới 30m
