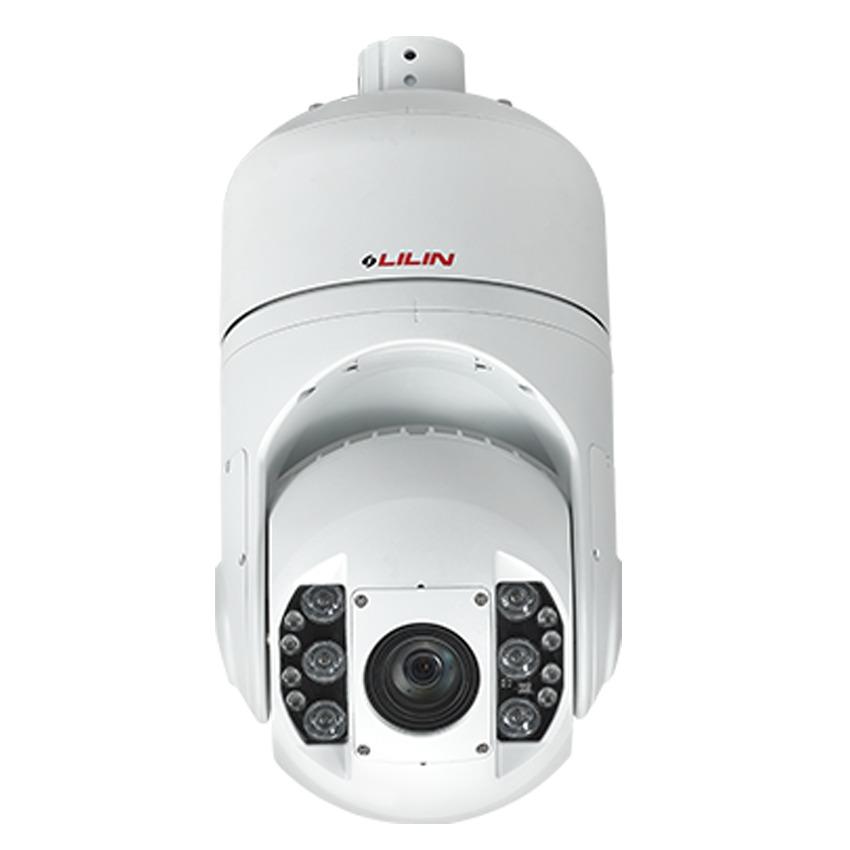

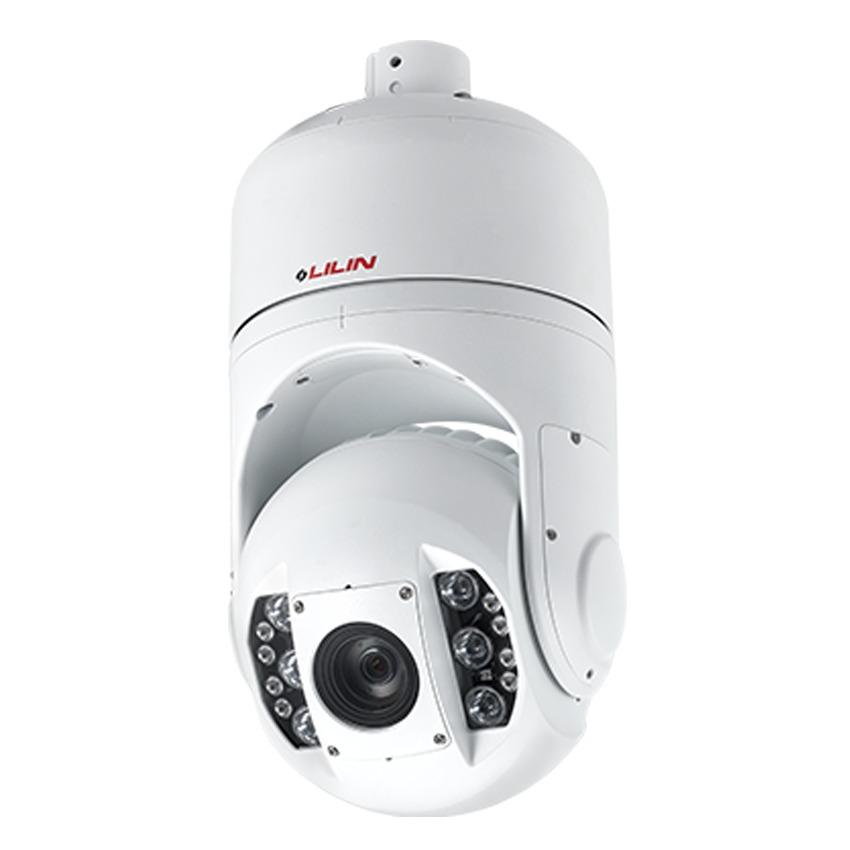

Camera LiLin PTZ Dome PSR5524X30

Camera LiLin PTZ Dome PSR5524X30
Camera LiLin PTZ Dome PSR5524X30

Camera LiLin PTZ Dome PSR5524X30

  • MS 000006156
  • LILIN
Giá : Liên hệ

Ống kính zoom quang 25X (4,7 - 117,5mm)

Zoom kỹ thuật số 16X

Ngày & Đêm (IR cắt rời)

Cảm biến hình ảnh Full HD 2,14 megapixel

60 FPS @ 1080P True H.264 AVC Video cấu hình cao

Tầm nhìn ban đêm hồng ngoại 150 mét

Truyền phát video đa cấu hình H.264 và Motion JPEG

Chức năng giảm nhiễu kỹ thuật số

Chức năng HDR lên đến 90dB

Tầm nhìn ban đêm hồng ngoại 150 mét

Thêm vào giỏ hàng
Model

PSR5524X30

Image Sensor/Sensor type1/2.8" CMOS image sensor
Effective pixels1944 (H) × 1224 (V) = 2,379,456 (pixels)
Video CompressionH.264 Main and High Profile, Motion JPEG
Resolution2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240)
Frame RatesNormal mode (H.264 / MJPEG) 60Hz: 60 FPS @ 1920 × 1080 50Hz: 50 FPS @ 1920 × 1080 WDR mode (H.264 / MJPEG) 60Hz: 30 FPS @ 1920 × 1080 50Hz: 25 FPS @ 1920 × 1080
Lens4.7 (WIDE) – 117.5 (TELE) mm
Iris1 : 1.6 (Wide) – 4.3 (Tele)
Angle of View10 cm (WIDE end), 1.5M (TELE end) (H) 61.7°(W) – 3.9°(T) (V) 35.1°(W) – 2.2°(T) (D)
Auto FocusAuto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus
Max IR distance150M
Infrared LED AngleAutomatically adjusted, Depending on the zoom ratio
Min. illumination/Low Light Mode (Colour)0.5 lux (1/30 sec, F1.6(Wide), 50IRE, AGC-Gain: 30dB ICROFF Color mode)
Video streamingRTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth
Video bitrate128Kbps – 12Mbps, Frame rate and bit rate controllable onthe- fly, VBR / CBR / GOP supported; Fixed bitrate
Scanning SystemProgressive Scan
IR cut filterAuto / Day (Color) / Night (Mono) / Schedule
Window / Glass ThicknessØ55 Heat Resistant Glass & Rain repellent glass
Peak wavelength850nm
White BalanceATW / Indoor(3200K) / Outdoor(5800K) / Manual(1800K – 10500K)
3D Noise ReductionOFF / ON (1 – 5)
High Dynamic Range(HDR)Up to 90dB
Privacy MaskingOFF / ON ( Up to 16 area)
Sense UpOFF / ON
Sense Up+Yes
Auto Gain Control50dB Variable Gain
Shutter TimeAuto / manual(1/30(25) – 1/10,000)
AudioG.711 / PCM
Audio Input / Outputone audio input / one audio output Terminal block type (microphone not built- in)
Live videoCVBS 1.0Vp-p, 75 ohm, terminal block type
Video ManagementONVIF Profile S, LILIN Navigator Enterprise 2.0, Third party VMS through LILIN HTTP API
Video DisplayLILIN Universal ActiveX & HTML5
OSD (On-Screen Display)Text overly for date, time , camera name, and PTZ position
ProtocolsIPv4, IPv6, TCP, UDP, HTTP, SMTP, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SIP, Bonjour, 802.1x
Alarm Input / outputDigital 4 Input (TTL 5Vdc) , 2 Output (DC40V,300mA (max.)) , Terminal block type
AccessMultiple user access levels with password protection
User accounts10 simultaneous users
EncryptionBase64 HTTP encryption
OSEmbedded Linux 3.10.104+
Zoom ratio30X Optical
CEYes
FCCYes
Power ConsumptionAC24V, 43.5W (Heater OFF) AC24V, 87.5W (Heater ON)
Power SupplyAC24V ±10%
FirmwareFirmware update via HTTP and IP Scan; Firmware available at web site
Network Interface/Ethernet10/100/1000Mbps Base-T, RJ-45
IP RatingIP66
Vandal Resistant Rating / IK RatingIK10
ePTZ & Digital Zoom16X
CPU requirementIntel® Core™ i3 or higher grade
OS requirementWindows 7 or above
RAM requirement4GB or above, Dedicated Graphics Card
Web browserMicrosoft® Internet Explorer® 9 or above
Users10 simultaneous users
Alarm event actionsFTP, SMTP, SD card, SAMBA, Alarm output(2), HTTP post, SNMP Trap, Preset position
Alarm event triggersAlarm(1 – 4) / Motion / Tamper / Audio / Network loss detection
SD Card (recording)Support Micro SD/SDHC/SDXC (up to 128GB) card for circular recording (card is not included)
Digital zoom16X
CPUEmbedded SoC, ARM Cortex-A9 1.0GHz, 512MB DDR3, 256MB flash memory
SystemEmbedded Linux 3.10.104+
IVS (Intelligent Video Surveillance)Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection
Multi IP addressYes
IP address filterIP address filter, MAC address filter
Mobile phoneIntegrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support
LanguagesEnglish, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese
Operating temperature- 40°C – + 50°C ( -40°F – 122°F )
Operating humidity0% – 90%
Dimensions395 (H) × 198 (D) mm
Weight6000 g
Minimum object distance10 cm (WIDE end), 1.5M (TELE end)
PTZ ControlPan , tilt , zoom in / out , absolute position, and video-click-nmove
S / N RatioMore than 50dB (AGC off)
DefogYes
Panning Range360° Endless
Panning ModeManual , Auto , Manual Position , Sequential Position
Panning SpeedManual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 300°/s, Alarm Trigger Speed 300°/s
Tilting Range-30° – +210°
Tilting ModeManual , Auto , Manual Position , Sequential Position
Tilting SpeedManual Approx. 0.1°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 300°/s, Alarm Trigger Speed 300°/s
Minimum Aperture Ratio1 : 1.6 (Wide) - 4.7 (Tele)
Control FunctionPan and Tilt / Zoom and Focus / Iris and ICR / 256 Preset Position / Home Position
Zoom Speed0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ]
Focus Speed0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Far to Near ) in Manual Mode ]
Exposure ModeAUTO / IRIS.P / SHUT.P / MANUAL
Auto ModeOFF / SCAN(16) / SEQ(256) / TOUR(16) / PATROL(16) / Auto TRACKING
Image EffectsContrast, Sharpness, Mirror, Flip, Defog, DIS, Digital Zoom(x16)
Schedule SettingOFF / SCAN (4)/ SEQ(256) / TOUR(4) / PATROL(4) / Preset Position(256)(via web interface)
Digital image stabilizationYes
OSD image watermarkText overly for date, time , camera name, and PTZ position
RAM4GB or above, Dedicated Graphics Card
