| Model | Camera LiLin Ultra Series UHG1182E |
| Image Sensor/Sensor type | 1/2.3-inch CMOS |
| Effective pixels | 4072 (H) × 3046 (V) = 12,403,312 (pixels) |
| Video Compression | H.264 Main and High Profile, Motion JPEG |
| Resolution | 4K(3840×2160), 1080P(1920×1080), 720P(1280×720), D1(720×480), CIF(352×240) |
| Frame Rates | Single-stream mode, H.264 : up to 30 fps @ 3840 x 2160 ( Video only support preview mode) ; Multi-stream mode, H.264 : up to 24fps @ 3840 x 2160, 30 fps @ 1920 x 1080, Motion JPEG : up to 30fps @ 1920 x 1080 |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
| Video bitrate | 128Kbps 〜12Mbps ; Frame rate and bit rate controllable on-the-fly ; VBR / CBR / GOP supported |
| Scanning System | Progressive Scan |
| IR cut filter | Colour (Day), Monochrome (Night), Auto, Schedule, External control |
| Min. illumination/Low Light Mode (Colour) | 0.5 Lux at F1.2 (Color); 0.1 Lux at F1.2 (B/W) |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 |
| Back Light Compensation (BLC) | On / Off |
| Shutter Time | 1/30(1/25)s to 1/30000s |
| Sense Up | Off / 1 frame / 2 frames |
| Sense Up+ | Yes |
| Auto Gain Control | 36 dB Variable Gain |
| 3D Noise Reduction | 1/30(1/25)s to 1/30000s |
| 2D WDR | Off / Auto / x2 / x3/ x4 (by normal mode) |
| Privacy Masking | Four independent areas |
| Other functions | Sharpness, Image flip, Image mirror, Defog, Hue |
| Live video | CVBS 1.0Vp-p, 75 ohm, RCA connector |
| Audio Input / Output | Mono, 1.4 Vp-p , 50 KΩ , 3.5mm phone jack |
| Encryption | Base64 HTTP encryption |
| Access | Multiple user access levels with password protection |
| User accounts | 10 users accounts available |
| IP address filter | Yes |
| Multi IP address | Yes |
| Users | 8 simultaneous users |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) is supported |
| OSD (On-Screen Display) | Text overlay for date, time and camera name |
| Alarm event triggers | Tampering / audio / motion /alarm detection triggering recording into SD card ; Image upload over HTTP, FTP, and E-mail by tampering / audio / motion detection |
| Alarm event actions | FTP,SMTP, HTTP post, SD card, SAMBA |
| CPU | Embedded SoC, 1.2GHz Dual ARM Cortex-A9 & 600MHz ARM11, 1GB DDR3, 256MB flash memory |
| Firmware | Firmware upgrade via HTTP |
| Network Interface/Ethernet | 10/100/1000Mbps Base-T, RT-45 |
| CE | Yes |
| FCC | Yes |
| OS requirement | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 |
| Web browser | Microsoft® Internet Explorer® 6.0 and later |
| CPU requirement | Intel Core 2 Duo E6400 2.13GHz or above |
| RAM requirement | 2GB or above, Independent Display Card |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
| Mobile phone | Integrated to LILIN mobile app (LILINViewer) ; iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / LILIN NAV 1.0 / Third party VMS through LILIN HTTP API |
| Video Display | LILIN Universal ActiveX & LILIN Java Applet |
| OS | Embedded Linux 3.8.0 |
| Audio | Two-way Audio, G.711 / PCM |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load max. 40VDC/300mA) |
| Operating temperature | -25℃ to 50℃ (-13℉ to 122℉) |
| Dimensions | 70mm(W) × 50mm(H) × 135mm(D) |
| Weight | 420g approx. |
| Power Supply | DC12V ±10% 。Power over Ethernet (IEEE 802.3af compliant) |
| PoE | IEEE802.3af |
| Power Consumption | DC12V, 7.2W / PoE, 8W |

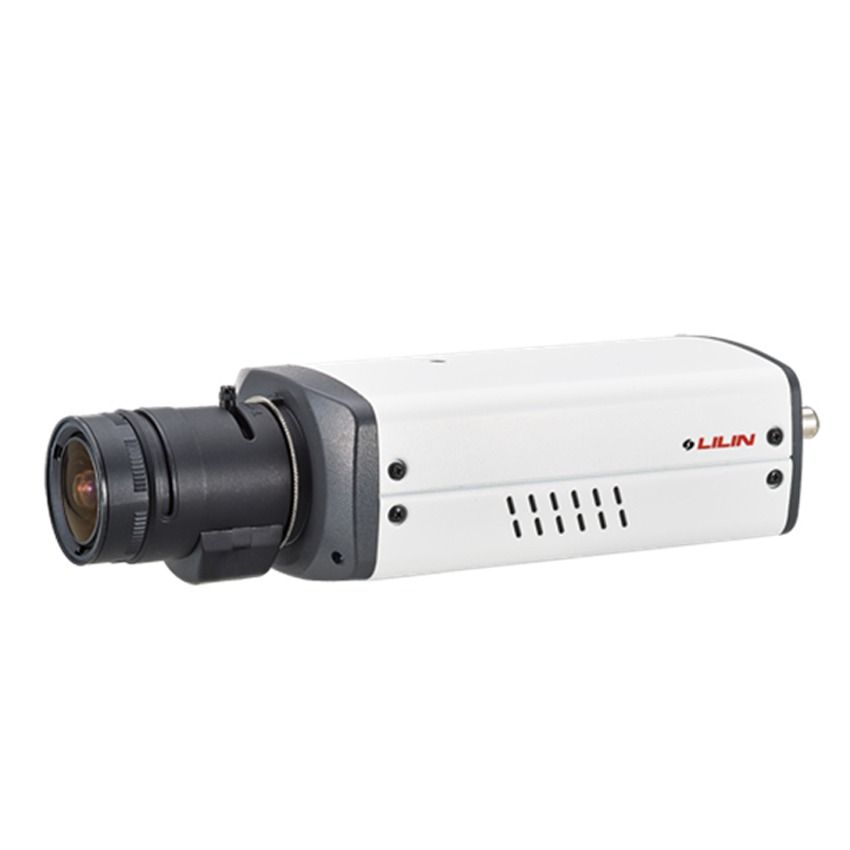

Camera LiLin Ultra Series UHG1182E
- MS 0016022
Cảm biến hình ảnh Ultra HD 12.0 megapixel
Nén video cấu hình cao 4K True H.264 AVC
Truyền phát video đa cấu hình H.264 và Motion JPEG
Giảm nhiễu 3D (MCTF)
Chức năng 2D WDR
Hỗ trợ PTZ kỹ thuật số
Chức năng cảnh báo phát hiện giả mạo / âm thanh / chuyển động
Ngày & Đêm (IR cắt rời)
Hỗ trợ âm thanh 2 chiều
I / O kỹ thuật số: 1 trong, 1 ra
ONVIF được hỗ trợ
Hỗ trợ RS-485
