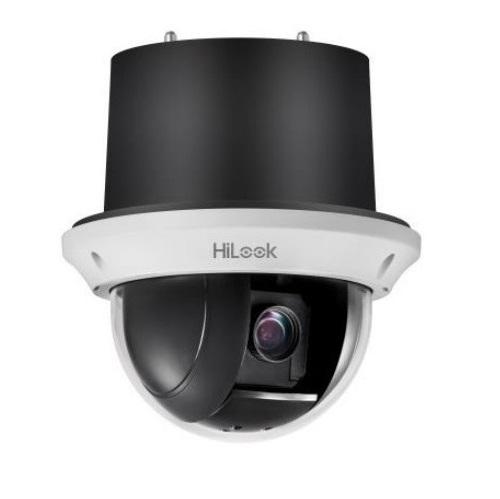

Camera Speed Dome 2.0 Megapixel HILOOK PTZ-T4215-D3
- HILOOK PTZ-T4215-D3 là dòng camera Speed Dome 2.0 Megapixel.
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Zoom quang: 15×.
- Zoom số: 16×.
- Độ nhạy sáng:
+ Color: 0.005 Lux @(F1.6, AGC ON)
+ B/W: 0.001 Lux @(F1.6, AGC ON)
- Hỗ trợ tính năng chống ngược sáng thực WDR 120dB.
- Chức năng giảm nhiễu số 3D-DNR.
- Tiêu chuẩn chống bụi và nước: IP66 (Thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 12 VDC.
- Kích thước: Ø 165 mm × 168 mm.
- Trọng lượng: 2kg.
Đặc tính kỹ thuật
| Model | PTZ-T4215-D3 |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance | Auto/Hauto/Manual/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000s NTSC: 1/1 s to 1/10,000s |
| Day & Night | IR cut filter |
| Digital Zoom | 16× |
| Privacy Mask | 8 programmable privacy masks |
| BLC (Backlight Compensation) | Yes |
| HLC (highlight Compensation) | Yes |
| EIS (Electric Image Stabilization) | Yes |
| Reginal Focus | Yes |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 5 mm to 75 mm, 15x Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Horizontal Field of View | 53.8° to 4.0° (wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 2.4 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s |
| Tilt Range | -5° to 90° (auto flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Yes |
| Park Action | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Yes |
| Scheduled Task | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ Zero Calibration/ None |
| Input/Output | |
| Turbo HD Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocols |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 12 VDC Max. 12 W |
| Working Temperature | -10° C to 50° C (14° F to 122° F) |
| Working Humidity | 90% or less |
| Protection Level | TVS 4,000 V lightning protection, surge protection, and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimension | Ø 165 mm × 168 mm |
| Weight (approx.) | 2 kg |
- Bảo hành: 24 tháng.
