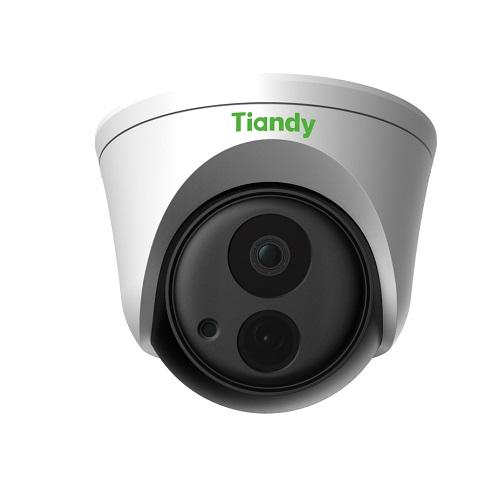

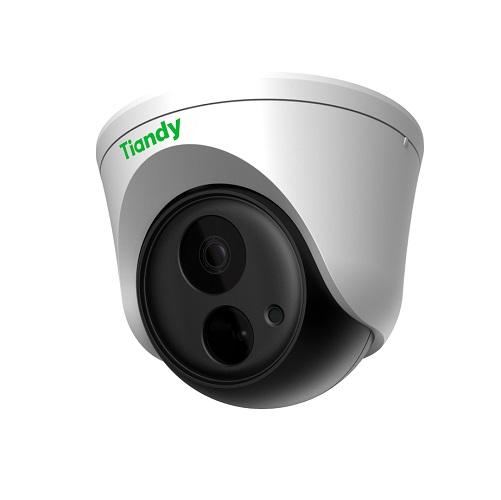

Camera TIANDY TC-A32F4 Spec:1/E/6mm
- PoE
- Face Recognition function
- 1080P@30fps
- WDR, NIR, BLC
- 6mm Fixed Lens
- Smart VCA function
- Audio 1/1
- Bulit-in Mic
- Alarm 2/1
- IP66
- Face Database
- Support 32 face group
- up to 5K face
Specifications
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.005Lux@ (F1.6, ACG ON) |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Lens | |
| Lens Type | Fixed |
| Focus | 6mm |
| Lens Mount | M12 |
| Aperture | F1.6, Fixed |
| FOV | Horizontal field of view: 53° |
| Illuminator | |
| IR LEDs | N/A |
| IR Range | N/A |
| Wavelength | N/A |
| White LEDs | 1 |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 1920×1080 |
| Main Stream | PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480) |
| NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | 4CIF |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or
web browser |
| Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
| ROI | Support 7 fixed region of coding |
| OSD | 16×16, 24×24,32×32, 48×48, 64×64, adaptable size, Letters Such as Week,
Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privace Mask | Yes |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full,
Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering,
Running, Parking, On Duty Detection, Video Abnormal, Audio Abnormal |
| Early Warning(EW) | N/A |
| Intelligent Coding | N/A |
| Intelligent Image | N/A |
| Intelligent Alarm | N/A |
| Face Detection and Analytics | |
| Operating Mode | Face recognition, face capture, intelligent monitoring optional,
default face recognition |
| Face Detection Performance | Detects up to 32 faces at the same scene |
| Face Exposure Brightness | Default 35, 1-100 brightness optional |
| Min. Face Pixel | Default 80, 19-1920 optional |
| Face Recognition | Yes |
| Face Library | 32 |
| Face Pictures | 5000 |
| Face Library Management | Retrieve, import, export |
| Face Recognition Alert | Comparision Alarm, stranger alarm |
| Precautionary Alert | N/A |
| Network | |
| ANR | N/A |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP,
IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1, Mic in |
| Alarm | 2/1 |
| Reset Button | N/A |
| On-board storage | N/A |
| General | |
| Firmware Version | NVSS_V20.0.1.20190313_SP1 |
| Web Client Language | English, Simple Chinese |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±20%/PoE |
| Power Consumption | MAX: 5.5W(12V) MAX: 6.5W(POE) |
| Protection | IP66 |
| Heater | N/A |
| Dimensions | Φ132×103 mm (Φ5.2*4.06 inch) |
| Weight | 0.65kg (1.43lb) |
