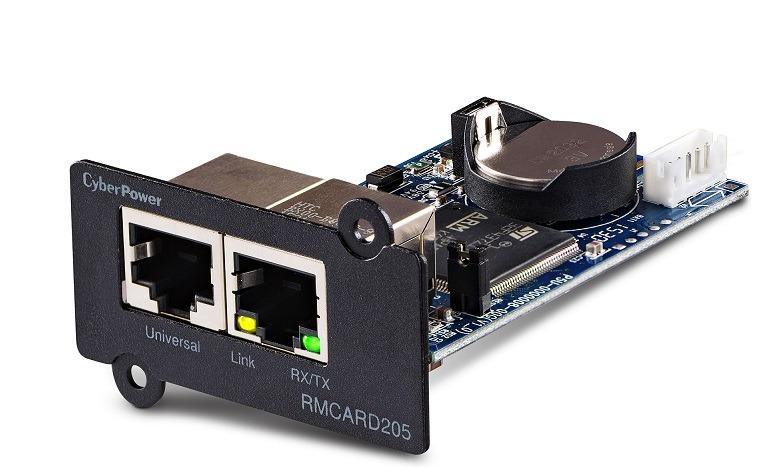

Card SNMP quản trị qua mạng CyberPower RMCARD205
- Real time UPS monitoring.
- Supports environment sensor.
- Remote management via web browser (HTTP/HTTPS), CLI(Telnet/SSH), or NMS (SNMPv1/v3).
- Automatic events notification via email, SMS, SNMP traps, and Syslog.
- View and save Event Logs and Status Records.
- Supports RADIUS, LDAP, LDAPS, and Windows Active Directory external authentication protocols.
- User upgradeable firmware via FTP or SCP.
- Update firmware and configuration file on multiple cards simultaneously using Upgrade and Configuration Utility.
- Compatible with select Smart App UPS and ATS PDUs.
Thông số kỹ thuật
| Model Name | RMCARD205 |
| General | |
| Type | Network Management Card |
| Network Port | Ethernet RJ-45 |
| Data Link Protocol | Ethernet 100Base-TX, Ethernet 10Base-T |
| LED Status Indicators | Tx/Rx, Link |
| Unversal Port | Optional EVIROSENSOR |
| Supported Protocols | |
| HTTP | v1.1: RFC 2616 |
| HTTPS | RFC 2818 |
| SNMP | v1: RFC 1155, RFC 1156, RFC 1157 v3: RFC 3414 |
| MIB | RFC 1213, RFC 1628 |
| SMTP | RFC 2821 |
| SMTPS | RFC 3207 |
| TLS | v1.0: RFC 2246 v1.1: RFC 4346 |
| SSL | v3.0: RFC 6101 |
| Telnet | RFC 854 |
| SSH | v2: RFC 4253, RFC 4254 |
| FTP | RFC 959 |
| SCP | v2: RFC 4253, RFC 4254 |
| DNS | RFC 1035 |
| DHCP | RFC 2131 |
| TCP/IP | v4: RFC 791 v6: RFC 2460 |
| RADIUS | RFC 2865 |
| LDAP | v3: RFC 2251 |
| LDAPS | v3: RFC 4513 |
| SysLog | RFC 5424 |
| NTP | RFC 958 |
| Cisco EnergyWise | v1.2.0 and newer |
| Physical | |
| Dimensions (WxHxD) | 54 x 36.06 x 76.2 mm |
| Weight | 0.036kg |
| Environmental | |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Relative Humidity | 0% to 90% non-condensing |
| Operating Elevation | 0 ft to 10000 ft (0 m to 3000 m) |
| Storage Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Relative Humidity | 0% to 95% non-condensing |
| Storage Elevation | 0 ft to 50000 ft (0 m to 15000 m) |
| Compatibility | |
| Supported CyberPower Models | Select PR/OL/OR series UPS systems and ATS PDU with Expansion Slot |
- Bảo hành: 24 tháng.
