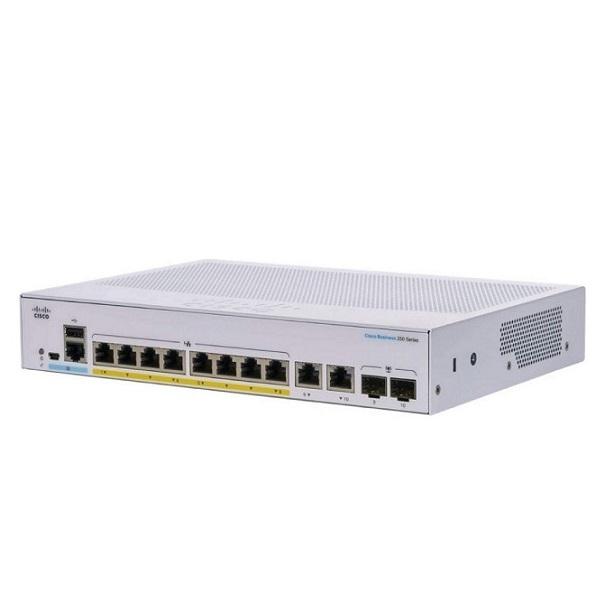

10-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-8P-E-2G-EU

10-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-8P-E-2G-EU

  • MS 000010552
  • CISCO
Giá : 6,420,000 vnđ (Đã bao gồm VAT)

10-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-8P-E-2G-EU

10-Port Gigabit Ethernet PoE Unmanaged Switch CISCO CBS250-8P-E-2G-EU

- Support 8 Gigabit PoE+ ports with 67W power budget.

- Support 2 Gigabit copper/SFP combo ports.

- Switching capacity: 20Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K byte.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- CPU memory: 512MB.

- Dimensions (W x D x H): 268 x 185 x 44 mm.

- Weight: 1.53kg.

Đặc tính kỹ thuật

ModelCBS250-8P-E-2G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets)14.88 mpps
Switching capacity20Gbps
General
Jumbo framesFrame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table8K addresses
Hardware
Total system ports10 Gigabit Ethernet
RJ-45 ports8 Gigabit Ethernet
Combo ports (RJ-45 + SFP)2 Gigabit Ethernet combo
Number of ports that support PoE8
Power dedicated to PoE60W
Console portCisco Standard mini USB Type-B/RJ45 console port
USB slotUSB Type-A slot on the front panel of the switch for easy file and image management
ButtonsReset button
Cabling typeUnshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDsSystem, Link/Act, PoE, Speed
Flash256MB
CPU800MHz ARM
DRAM512 MB
Packet buffer1.5 MB
Power consumption (worst case)
System power consumption110V=13.84W
220V=14.31W
Power consumption (with PoE)110V=80.79W
220V=80.86W
Heat dissipation (BTU/hr)275.91
Environmental
Unit dimensions (W x D x H)268 x 185 x 44 mm
Unit weight1.53kg
Power100 to 240V, 50 to 60 Hz, external
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature-5° to 50°C
Storage temperature-25° to 70°C
Operating humidity10% to 90%, relative, noncondensing
Storage humidity10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)Fanless
MTBF at 25°C (hours)1,706,649

- Bảo hành: 12 tháng.
