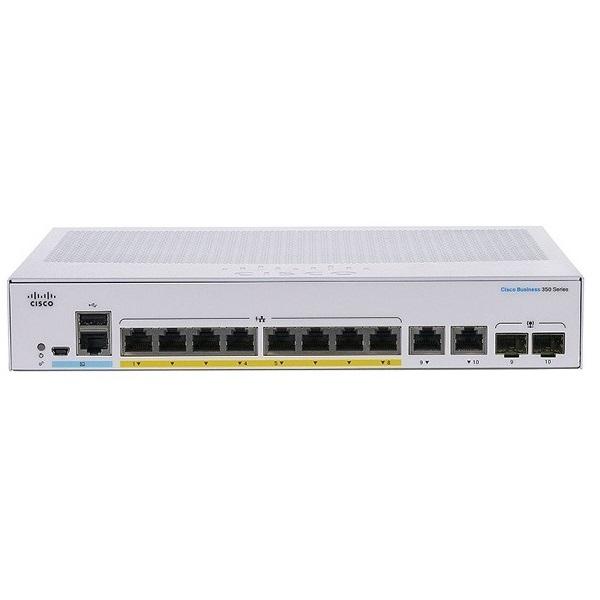

10-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-8P-E-2G-EU

10-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-8P-E-2G-EU

  • MS 000010554
  • CISCO
Giá : 7,860,000 vnđ (Đã bao gồm VAT)

10-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-8P-E-2G-EU

10-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-8P-E-2G-EU

- Support 8 Gigabit PoE+ ports with 67W power budget and 2 Gigabit copper/SFP combo ports.

- Switching Capacity: 20Gbps.

- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.

- MAC table: 16K addresses.

- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.

- Flash: 256MB.

- CPU: 800MHz ARM.

- DRAM: 512MB.

- Dimensions (W x D x H): 268 x 185 x 44 mm.

- Weight: 1.53kg.

Đặc tính kỹ thuật

Model  CBS350-8P-E-2G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets)14.88 mpps
Switching capacity20Gbps
General
Jumbo framesFrame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table16K addresses
Hardware
Total System Ports10 x Gigabit Ethernet
RJ-45 Ports8 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP])2 x Gigabit Ethernet combo
Number of Ports That Support PoE8
Power Dedicated to PoE60W
Console portCisco standard mini USB Type-B/RJ45 console port
USB slotUSB Type-A slot on the front panel of the switch for easy file and image management
ButtonsReset button
Cabling typeUnshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDsSystem, Link/Act, PoE, Speed
Flash256 MB
CPU800 MHz ARM
DRAM512 MB
Packet buffer1.5 MB
Power consumption (worst case)
System Power Consumption110V=13.84W
220V=14.31W
Power Consumption (with PoE)110V=80.79W
220V=80.86W
Heat Dissipation (BTU/hr)275.91
Environmental
Unit dimensions (W x D x H)268 x 185 x 44 mm
Unit weight1.53 kg
Power100-240V 50-60 Hz, external
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature-5° to 50°C
Storage temperature-25° to 70°C
Operating humidity10% to 90%, relative, noncondensing
Storage humidity10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number)Fanless
MTBF at 25°C (hours)1,706,649

- Bảo hành: 12 tháng.
