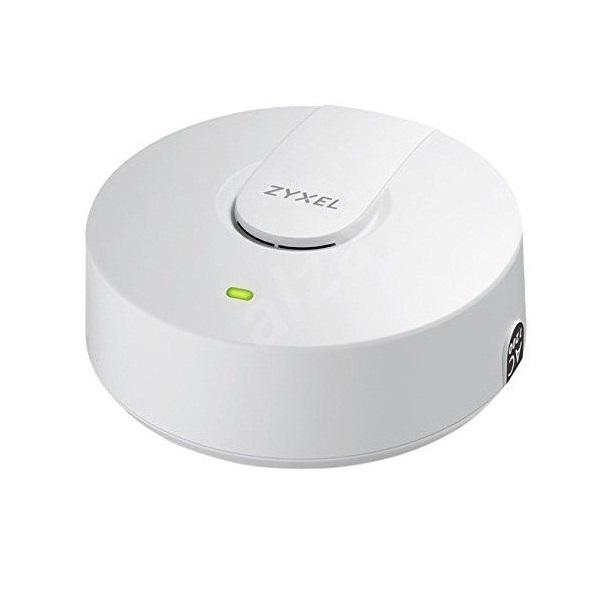

Ceiling Mount PoE Access Point ZyXEL NWA1123-AC v2
- 802.11a/b/g/n/ac dual band, dual radio 802.3af GbE Ceiling-mount AP (2T2R) (300M+866M) (11ac: 26dbm ; 11n: 23dbm).
- Enterprise class, supporting combined data rates up to 1200Mbps.
- Better coverage with optimised antenna and RF design.
- Flexible operating modes (standalone, repeater mode).
- Reliable software and robust hardware design.
- Set up and forget offers better-than-ever WLAN experience.
- Streamlined controller-less deployment with ZAC.
- Embedded antenna module and optimised radiation pattern.
- An ideal solution for small businesses, hotels and school environments.
- Blends seamlessly into interior spaces and prevents equipment theft.
- Includes multiple SSID and solid WiFi security via WPA2 enterprise.
Specifications
| Model | NWA1123-AC v2 |
| RF | |
| Frequency band | 2.4 GHz (IEEE 802.11 b/g/n) |
| 5 GHz (IEEE 802.11 a/n/ac) | |
| Number of antenna | 2x2 MIMO |
| Antenna gain | 2.4GHz: 4dBi |
| 5GHz: 6dBi | |
| LAN | |
| Ethernet Port | 1 x 10/100/1000M |
| PoE | Yes |
| PoE power draw | 7W |
| WLAN Security | |
| WEP/ WPA/ WPA2-PSK | Yes |
| Number of multiple SSID | 16 |
| IEEE 802.1x | Yes |
| MAC filtering | Yes |
| WLAN access control list | Yes |
| RADIUS authentication | Yes |
| Standard Compliance | |
| Ethernet | IEEE 802.3, IEEE 802.3u, IEEE 802.11ac, IEEE 802.3az, IEEE 802.3af |
| Network | |
| Network | Support IPv6, VLANs, DHCP client |
| Management | |
| ZON Utility | Discover Zyxel switches, APs and gateways Centralized and batch configuration - IP configuration - IP renew - Device reboot - Device locating - Web GUI access - Firmware upgrade - Password configuration - ZAC access |
| Standalone AP mode | Yes |
| CLI | Yes |
| SNMP | Yes |
| General | |
| Power supply | Input: 100 - 240 VAC - 50/60 Hz 0.3 A; Output: 12 VDC/ 1 A |
| Storage Temperature | 30°C to 70°C |
| Operating Temperature | 0°C to 60°C |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
