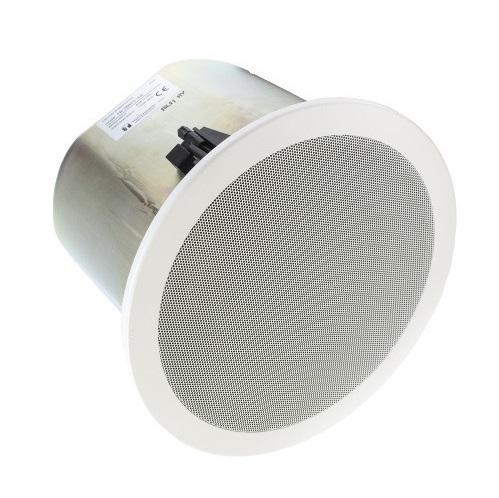

Ceiling Subwoofer TOA FB-2862C-AS
- Ceiling Subwoofer, FB-2862C offers an attractive exterior designed created by an interior designer to blend it naturally to any architectual space, enhancing the immediate area's sense of harmony. The bass reflex speaker system designed to provide low frequency range and high-quality sound output, ideal for locations with high ceiling or places that requires true-to-life sounds.
Specifications
| Model | FB-2862C-AS |
| Enclosure | Bass Reflex Type |
| Rated Input | 60W (High Impedance) |
| Power Handling Capacity | Continuous: 60 W (8Ω) (IEC60268-5) Program: 120 W (8Ω) |
| Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) 25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W) 8Ω (120W) |
| Sound Pressure Level | 87 dB (1 W, 1 m) installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling or wall) 81 dB (1 W, 1 m) installation in free sound field (measured in anechoic chamber) |
| Frequency Response | 60 - 250 Hz (-10 dB) installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling or wall) |
| Speaker Component | Low Frequency: 16 cm cone-type |
| Mounting Hole | Φ 250 mm (Maximum ceiling thickness: 37mm) |
| Input Terminal | Removable locking connector with screw-down terminals (2 input terminals and 2 bridging terminals) |
| Usable Cable | Solid copper wire: Φ0.5 - Φ1.6mm (equivalent to AWG No. 24 - 14) Stranded copper wire: 0.2 - 2.5mm² (equivalent to AWG No. 24-14) |
| Finish | Enclosure: Steel plate, plating Baffle: Fire-resistant ABS resin (UL-94 V-0), black Rim: Fire-resistant ABS resin (UL-94 V-0), white (RAL 9016) Punched net: Steel plate, white (RAL 9016), paint |
| Dimensions | Φ280 × 198 (D) mm |
| Weight | 6.3 kg (including mounting accessory) |
| Accessory | Grille x 1, Ceiling Reinforcement x 1, Safety Wire x 1, Paper Pattern x 1 |
| Option | Anchoring Hanging Bracket: HY-AH1, Tile Bar Bridge: HY-TB1 |
- Sản xuất tại Indonesia.
- Bảo hành: 12 tháng.
