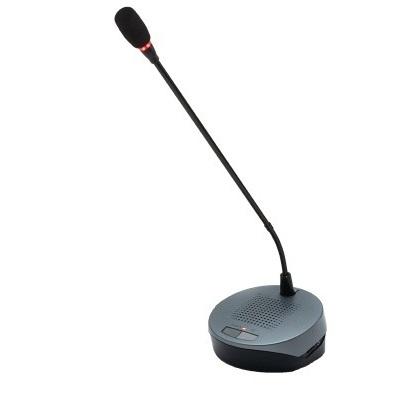

Chairman Unit with Long Microphone TOA TS-691L-AS
- The TS-691L-AS is a Chairman unit of the TOA conference system, TS-690 Series of which compact and lightweight design makes it easy to install and store. Placing the speech button in ON position allows a chairman to speak and disable the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from delegate units (TS-692L) to be monitored. Pressing the priority key on the chairman unit allows chairman to take precedence over any delegate units. And the TS-691L Chairman Unit comes with a long microphone as a standard accessory.
Specifications
| Model | TS-691L-AS |
| Power Source | 36 VDC, 30 mA or less (supplied from the Central Unit TS-690) |
| Output | Headphone/Recording: Ø 3.5 mm, mini jack (3P: monaural) Internal speaker: 130 Ω, 200 mW |
| Control | Speech: Microphone, speaker on-off control by speech button Priority: Microphone, speaker on-off, other microphone cut-off, and single-tone chime activation by priority button Volume control: Headphone/Recording and internal speaker volume adjustable |
| Microphone Unit (Accessory) | Electret Condenser Microphone Directivity: Unidirectional Impedance: 1.8kΩ Sensitivity: -37dB (1kHz 0dB = 1V/Pa) Frequency Response: 100Hz - 13 kHz Length: 518mm Weight: 105g (0.23 lb) |
| Operating Temperature | 0 °C to +40 °C |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Upper case: ABS resin, metallic grey, paint Lower case: ABS resin, black |
| Dimensions | 145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72' × 2.78' × 5.93') (Excluding Microphone Unit) |
| Weight | 800g (1.76 lb) (Excluding Microphone Unit) |
| Accessory | Long Microphone Unit x 1 |
| Option | Extension cord: YR-780-2M, YR-780-10M |
- Sản xuất tại Việt Nam.
- Bảo hành: 12 tháng.
