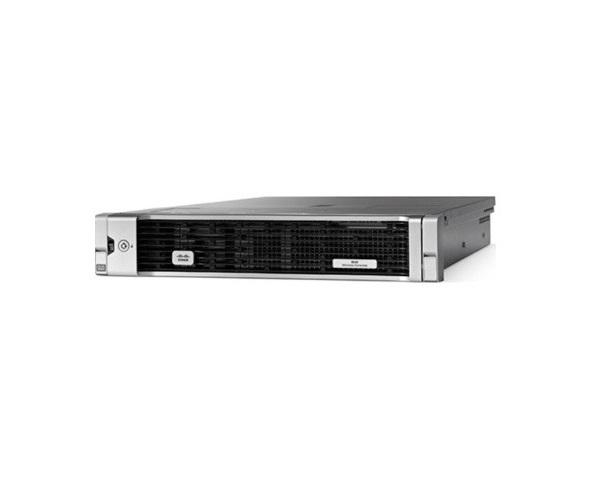

Cisco 8540 Wireless Controller AIR-CT8540-K9
- Cisco 8540 Wireless Controller with rack mouting kit.
The Cisco 8540 Wireless Controller, optimized for 802.11ac Wave2 performance, high scale, and enhanced system uptime, supports:
- Intent-driven programmability and streaming telemetry.
- Subsecond access point and client failover for uninterrupted application availability.
- Extraordinary visibility into application traffic, using Cisco Application Visibility and Control (AVC), the technology that includes the Network-Based Application Recognition 2 (NBAR2) engine, Cisco's Deep Packet Inspection (DPI) capability. This allows to mark, prioritize, and block to conserve network bandwidth and enhance security. Customers can optionally export the flows to Cisco Prime Infrastructure or a third-party NetFlow collector.
- Embedded wireless Bring-Your-Own-Device (BYOD) policy classification engine that allows classification of client devices and application of user group based policies.
- Deployment of guest access and Bonjour and Chromecast services in centralized deployments.
- Software-defined segmentation with Cisco TrustSec® technology, reducing Access Control List (ACL) maintenance, complexity and overhead.
- Integrated Cisco CleanAir® technology, providing the industry’s only self-healing and self-optimizing wireless network.
- Wi-Fi Alliance Passpoint (Hotspot 2.0) for mobile data offload.
- Network-based mobility management with Proxy Mobile IPv6 Mobility Access Gateway (MAG) and eGRE support for integration with cellular data networks.
- Simplified GUI wizard for quick setup and intuitive dashboards for monitoring and troubleshooting.
- Cisco DNA and SD-Access Wireless, as well as Cisco DNA Assurance.
Specifications
| Product Code | AIR-CT8540-K9 |
| Description | Cisco 8540 Wireless Controller with rack mounting kit |
| Chassis Height | Two rack-unit (2RU) |
| Throughput | 40 Gbps |
| Max AP Support | 6000 |
| Max Client Support | 64000 |
| Max VLANs | 4096 |
| Data Ports | 4 x 10 Gigabit Ethernet interfaces or 4 x 1 Gigabit Ethernet interfaces |
| Storage | Dual SSD with Hardware RAID |
| Wireless | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2 |
| Wired/switching/routing | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation |
| Data request for comments (RFC) | RFC 768 UDP RFC 791 IP RFC 2460 IPv6 RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 1122 Requirements for Internet Hosts RFC 1519 CIDR RFC 1542 BOOTP RFC 2131 DHCP RFC 5415 CAPWAP Protocol Specification RFC 5416 CAPWAP Binding for 802.11 |
| Management Interfaces | Web-based: HTTP/HTTPS Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port Cisco Prime Infrastructure |
| Power Options | 1200 W AC, 930 W DC Redundant PSUs |
| Dimensions (W x L x H) | 18.96 x 30.18 x 3.43 in. (48.2 x 76.6 x 8.70 cm) |
| Net Weight | 44 lb (19.9 kg) |
- Bảo hành: 12 tháng.
