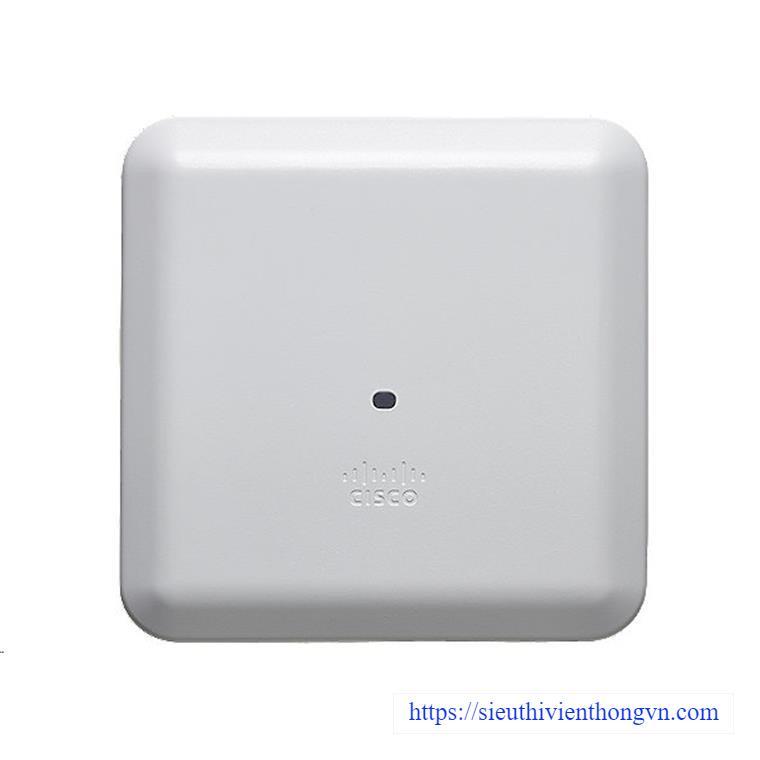

Cisco Aironet AIR-AP2802I-S-K9
- Cisco Aironet AIR-AP2802I-S-K9 is one of the Cisco Aironet 2800 Series Access Points, supports 802.11ac W2 AP w/CA; 4x4:3; Int Ant; 2xGbE S Domain.
- This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers.
- The Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage.
- AIR-AP2802I-S-K9 provides internal antenna and S regulatory domain.
Specifications
| Product Code | AIR-AP2802I-S-K9 |
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS®XE Software Release 16.3 |
| Supported wireless LAN controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches Cisco Mobility Express |
| 802.11n version 2.0 (and related) capabilities | 4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support |
| 802.11ac Wave 1 capabilities | 4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| 802.11ac Wave 2 capabilities | 4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| Integrated antenna | Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) |
| Smart antenna connector | Available on the 2802e Series access points only Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio |
| Interfaces | 2x100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled via future software) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 8.66” x 8.68” x 2.17” |
| Weight | 3.53 lb (1.6 kg) |
| Input power requirements | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE®) 802.3at power injector (AIR-PWRINJ6=) |
- Bảo hành: 12 tháng.
