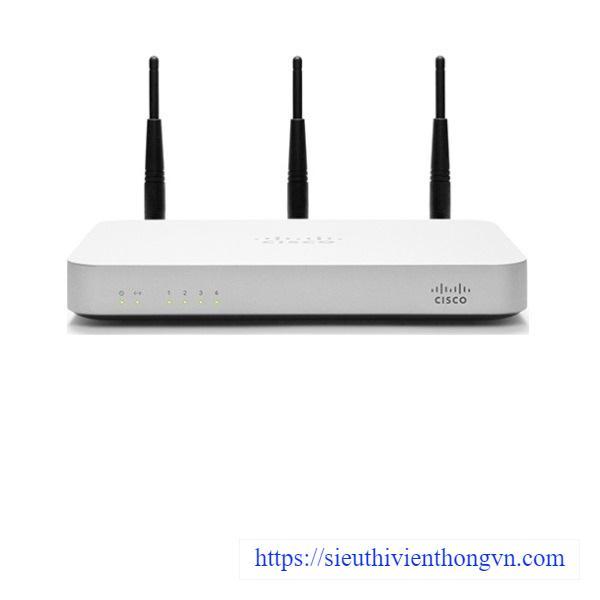

Cloud Managed Security Appliances Meraki CISCO MX60W
- Interfaces 5×GbE, 1×802.11n WiFi, (3x3, dual-band) tateful Firewall Throughput 100 Mbps, VPN Throughput 50 Mbps.
- The Meraki MX60W is an enterprise security appliance designed for distributed deployments that require remote administration.
- USB port, to support approved 3G/4G cards for failover to cellular networks.
- Support for four LAN connections.
- LAN 2 port can be configured to be a LAN or WAN connection, allowing support up to 2 WAN connections.
- Wall screws and anchors for mounting drywall surface, either vertically or horizontally.
Specification
| Performance | Stateful firewall throughput: 100 Mbps Advanced security throughput: 20 Mbps Maximum site-to-site VPN sessions: 20 Maximum VLANs: 4 Recommended for: Small Branches (10 to 20 Users) |
| Network Services | Application-level (L7) traffic analysis and shaping Site-to-site (IPsec) VPN Stateful firewall, 1:1 NAT, DMZ Multiple WAN IP, PPPoE, NAT and DHCP User and device quarantine |
| Monitoring and Management | Web based management and configuration Throughput, connectivity monitoring and alerts Network asset discovery and user identification Built-in network-wide reporting, monitoring and alerts Centralized policy management Real-time diagnostic and troubleshooting over the web Automatic firmware upgrades and security patches Searchable network-wide event logs |
| Advanced Security Services | Next generation application-level (L7) firewall Content Filtering Anti-Virus Anti-Phishing Meraki Advanced Security License required |
| Interfaces | WAN interfaces: 1 x 1000 Base-T Ethernet LAN interfaces: 4 x 1000 Base-T Ethernet USB interfaces: 1 x USB 2.0 |
| Integrated Wireless | 802.11a/b/g/n (2.4 GHz or 5 GHz) Max data rate 450 Mbit/s 3x3 MIMO with 3 spatial streams, beamforming 3 external dual-band dipole antennas (connector type: RP-SMA) Antenna gain: 3.5 dBi @ 2.4 GHz, 3.5 dBi @ 5 GHz WPA2-PSK authentication |
| Power | 12V / 1Amp power supply |
| Environment | Operating temperature: 32°F to 104°F (0°C to 40°C) Humidity: 5 to 95% non-condensing |
| Physical Dimensions | Dimensions: 9.409 x 6.693 x 1.339 inch (239x170x 34 mm) Weight: 3.04 lbs (1.4 kg) |
- Bảo hành: 12 tháng.
