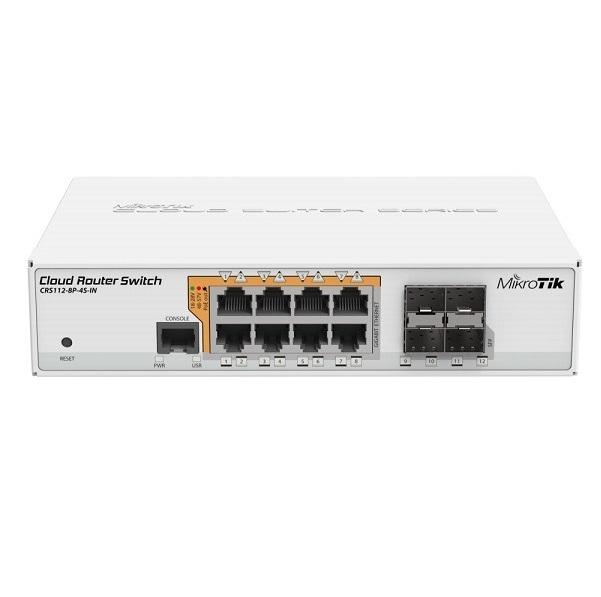

Cloud Router Switch Mikrotik CRS112-8P-4S-IN
- CRS112-8P-4S-IN is eight Gigabit RJ45 ports PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Switching features
- Non-blocking Layer 2 switching capacity.
- 16K host table.
- IEEE 802.1Q VLAN.
- Supports up to 4K simultaneous VLANs.
- Port isolation.
- Port security.
- Broadcast storm control.
- Port mirroring of ingress/egress traffic.
- Rapid Spanning Tree Protocol.
- Access Control List.
- MikroTik neighbor discovery.
- SNMP.
- 9204-byte jumbo frames support.
- IGMP snooping.
- Static link aggregation.
Quick specifications
- 8 Gigabit RJ45 Ports.
- 4 SFP Ports.
- Non-Blocking Throughput: 12 Gbps.
- Switching Capacity: 24 Gbps.
- Forwarding Rate: 17.8 Mpps.
- Maximum Power Consumption: 10 W (without PoE devices connected).
- Supports PoE+ IEEE 802.3at/af and 24V Passive PoE.
- Quiet, Fanless Operation.
- Desktop-Rackmount.
Đặc tính kỹ thuật
| Model | CRS112-8P-4S-IN |
| CPU nominal frequency | QCA8511 |
| Size of RAM | 128 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| 10/100/1000 Ethernet ports | 8 |
| SFP ports | 4 |
| Serial port | RJ45 |
| PoE out | Yes, 802.3af/at |
| Supported input voltage | 18 V - 57 V |
| Dimensions | 200 x 142 x 44 mm |
| Operating system | RouterOS, level 5 license |
| Max power consumption | 160 W |
| Max power consumption without attachments | 10 W |
- Bảo hành: 12 tháng.
